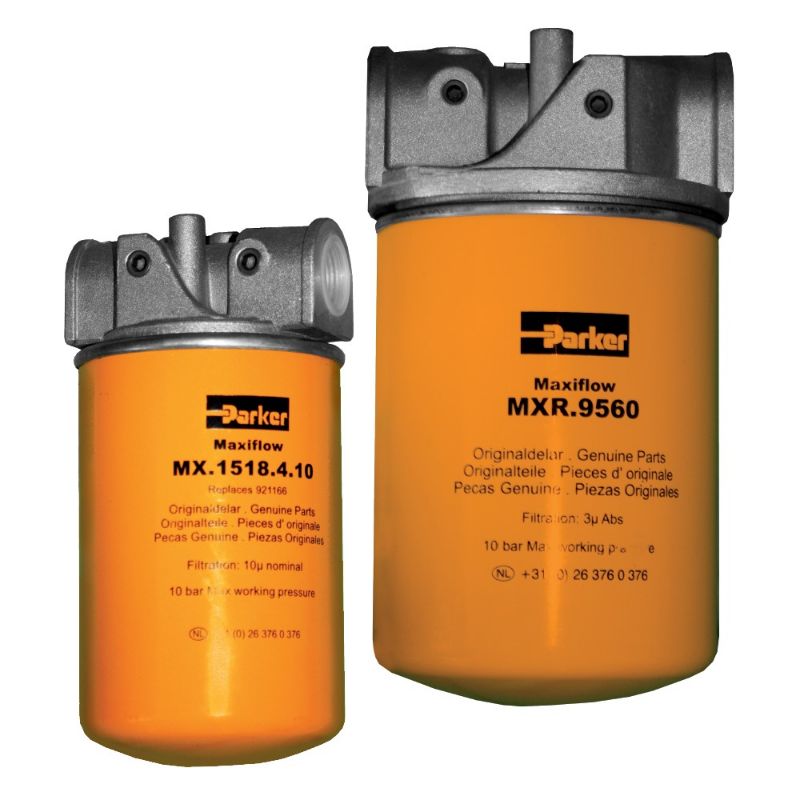

Parker MXA1210CBG2GG121 - Low Pressure In-Line Spin-On Filter - Maxiflow Series

The Maxiflow Series is a range of spin-on filters designed to provide low cost quality protection for hydraulic or lubrication systems.
Maximum pressure 10 bar. Maximum flow 360 l/min.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MXA1210CBG2GG121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Mounting Type	Inline	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	Product Type	Hydraulic Filter
Housing Material	Aluminium	Industry	Materials Handling
Operating Pressure	150 psi	Indicator Pressure Setting	1.2 bar
For Fluid Type	Hydraulic Oils	Materials of Construction	Housing: Aluminium
Application	Telescopic Handlers	Flow Rate	up to 360 L/min
Product Style	Inline Spin-On Filter	Product Series	Maxiflow
Operating Temperature	-30 to 100 °C	Seal Material	Nitrile
Options	Standard	Indicator Type	Visual
Micron Rating	10 µm	Filter Element Type	10C Cellulose
Connection Type	G¾	Bypass Valve Pressure Rating	1.7 bar
Flow Rate	0 to 60 l/min
