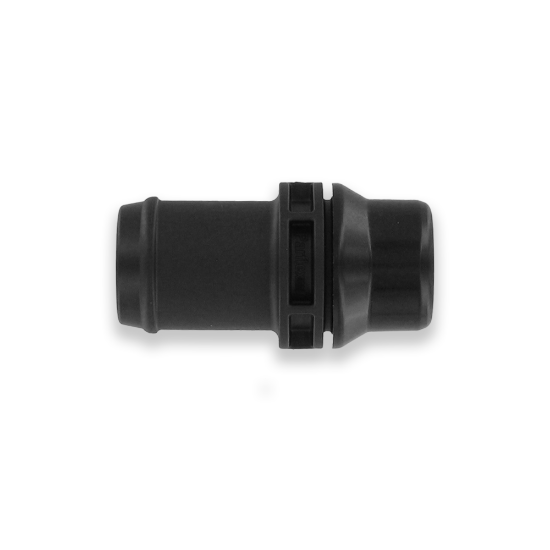

Parker MVDA20HB-1000 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVDA20HB-1000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Industry	Transportation
Connection Size	n/a	Division	Parflex Division
Application	Fluid Transfer	Maximum Operating Temperature	212.0
Vacuum Pressure Rating	n/a	Seal Material	EPDM (O-Ring)
Minimum Operating Temperature	-40.0	For Fluid Type	Coolants (Water Based)
Maximum Operating Pressure	125.0	Product Type	Hose Fitting
Product Series	ECH	Materials of Construction	High Performance Glass Filled Polyamide
Configuration	Barb to Male VDA	Connection Type	Male VDA, Beaded Barb
Size	1.000	Length	2.4
Fitting Type	Male VDA / Beaded Barb	Product Style	MVDA
Connection 1 Size	0.787	Connection 2 Size	1.000
Notes	Male VDA Size: 0.787" / 20 mm	Shape	Straight
Length (inch)	2.40"	Connection 1 Hose Inside Diameter	0.787" (I.D.)
Product Style	MVDA
