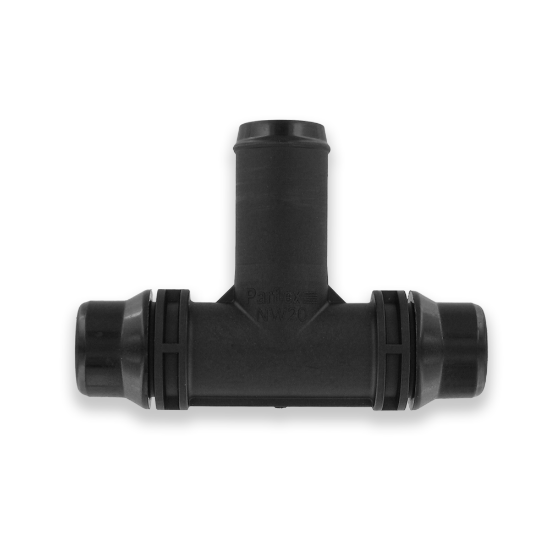

Parker MVDA2020HB16 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVDA2020HB16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Industry	Transportation	Connection Size	n/a
Division	Parflex Division	Shape	Tee
Application	Fluid Transfer	Connection Type	Male
Maximum Operating Temperature	212.0	Vacuum Pressure Rating	n/a
Seal Material	EPDM (O-Ring)	Minimum Operating Temperature	-40.0
For Fluid Type	Coolants (Water Based)	Maximum Operating Pressure	125.0
Product Series	ECH	Materials of Construction	High Performance Glass Filled Polyamide
Configuration	Male VDA Adaptor Tee to Beaded Barb	Product Type	Adaptor Tee
Length	4.33	Fitting Type	Adaptor Tee
Product Style	MVDA Adaptor Tee	Connection 1 Size	0.787
Connection 2 Size	0.787	Connection 3 Size	1.0
Shape	Tee	Connection 1 Hose Inside Diameter	0.787" (I.D.)
Length (inch)	4.33"	Product Style	MVDA Adapter
