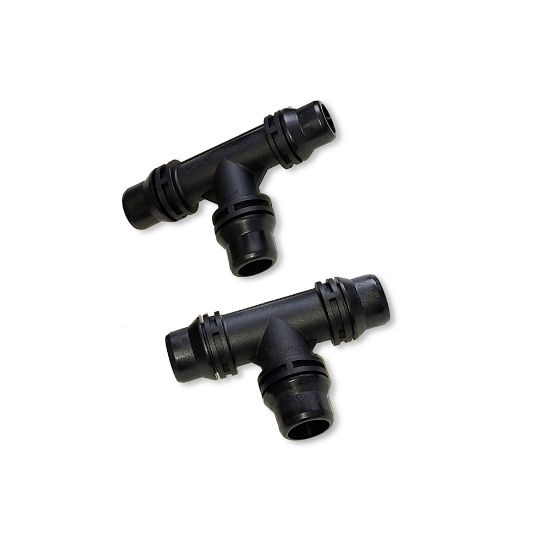

Parker MVDA16T - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVDA16T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Minimum Operating Temperature	-40
Division	Parflex Division	Industry	Transportation
Connection Size	n/a	Maximum Operating Temperature	212
Division	Parflex Division	Shape	Tee
Application	Fluid Transfer	Maximum Operating Pressure	125
Vacuum Pressure Rating	n/a	Seal Material	EPDM (O-Ring)
Configuration	Hose to VDA	For Fluid Type	Coolants (Water Based)
Connection Type	Push-to-Connect	Size	-18
Fitting Type	Barb / Beaded Barb / Mini Barb	Product Type	Hose Fitting
Product Style	VDA	Product Series	ECH
Connection 1 Size	0.629 inch Hose I.D.	Materials of Construction	High Performance Glass Filled Polyamide
Length	4.25	Shape	Tee
Length (inch)	4.25"	Connection 1 Hose Inside Diameter	0.629" (I.D.)
Product Style	MVDA
