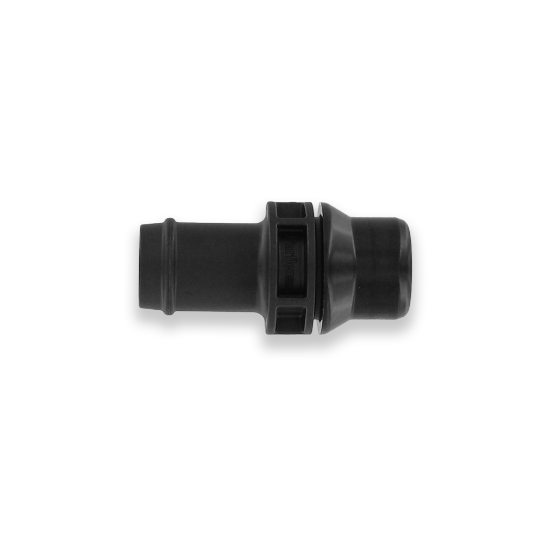

Parker MVDA16HB-0750 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVDA16HB-0750

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Industry	Transportation
Connection Size	n/a	Division	Parflex Division
Application	Fluid Transfer	Maximum Operating Temperature	212.0
Vacuum Pressure Rating	n/a	Seal Material	EPDM (O-Ring)
Minimum Operating Temperature	-40.0	For Fluid Type	Coolants (Water Based)
Maximum Operating Pressure	125.0	Size	0.750
Notes	Male VDA Size: 0.630" / 16 mm	Length	2.27
Product Type	Hose Fitting	Product Series	ECH
Connection 1 Size	0.630	Materials of Construction	High Performance Glass Filled Polyamide
Connection 2 Size	0.750	Configuration	Barb to Male VDA
Connection Type	Male, Beaded Barb	Fitting Type	Male VDA / Beaded Barb
Product Style	MVDA	Shape	Straight
Length (inch)	2.27"	Connection 1 Hose Inside Diameter	0.629" (I.D.)
Product Style	MVDA
