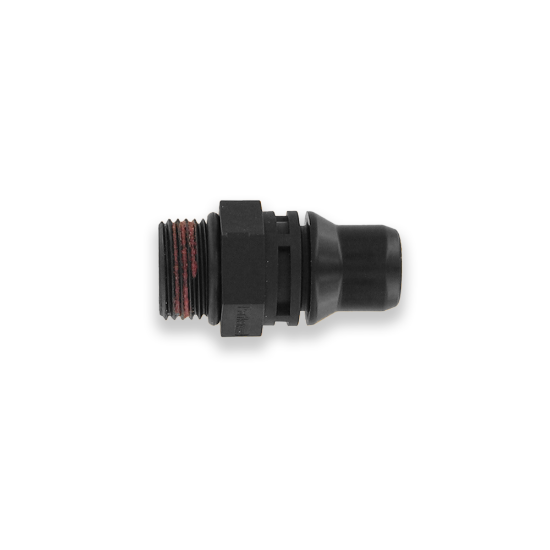

Parker MVDA1205-08 - Push To Connect VDA Fittings for Electronic Coolant Hose – ECH Series

Parker's ECH Series fittings are VDA style fittings designed to work with Electronic Coolant Hose (ECH)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MVDA1205-08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Minimum Operating Temperature	-40
Shape	Straight	Division	Parflex Division
Industry	Transportation	Maximum Operating Temperature	212
Division	Parflex Division	Fitting Type	Port Adapter
Connection 2 Type	Male SAE-ORB	Connection 2 Thread Size	3/4-16
Application	Fluid Transfer	Connection 2 Size	1/2
Connection Size	-8	Maximum Operating Pressure	125
Vacuum Pressure Rating	n/a	Seal Material	EPDM (O-Ring)
For Fluid Type	Coolants (Water Based)	Product Style	VDA
Product Series	ECH	Connection 1 Size	0.472 inch Hose I.D.
Materials of Construction	High Performance Glass Filled Polyamide	Size	12
Configuration	Port Adapter	Connection Type	Male VDA to SAE-ORB
Product Type	Port Adapter	Length	1.75
Connection 1 Type	Male VDA	Shape	Straight
Length (inch)	1.75"	Connection 1 Hose Inside Diameter	0.472" (I.D.)
Product Style	MVDA Adapter
