| UOM | EA | Minimum Operating Temperature | -17 °C |

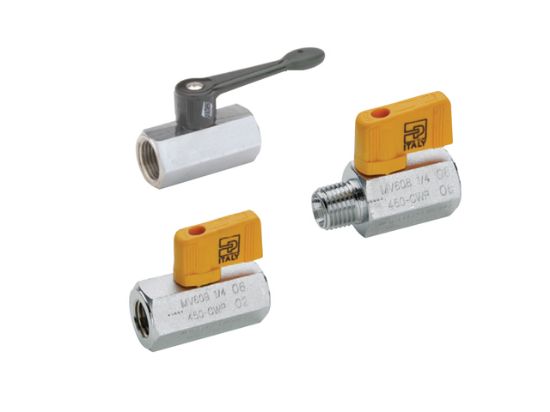

| Product Type | Ball Valve | Specifications Met | N/A |
| Ball Material | Chrome Plated Brass | Lock Type | Non-Locking |
| Maximum Flow Rate | 5.6 Cv | Body Material | Chrome Plated Brass |
| Operation Type | on/off | Mounting Type | In-Line |
| Seat Material | PTFE | Configuration | In-Line |
| Handle Type | Compact | Function | 2-Way |
| Connection Type | NPT | Division | Fluid System Connectors Division |
| Maximum Operating Temperature | 93 °C | Actuation Type | Manual |
| Seal Material | PTFE | Orifice Size | N/A |
| Connection Size | 1/2 inch | Maximum Operating Pressure | 31 bar |
| Connection 2 Thread Size (inch) | 1/2 | Connection 1 Thread Size (inch) | 1/2 |
| Connection 2 Thread Style | Female Pipe | Style | Male to Female Pipe Ends |
| Handle | Polyamide Wedge Lever | Connection 1 Thread Style | Male Pipe |
| Vacuum Rating (inch of Hg) | 28 | Maximum Working Pressure (Bar) | 31 |
| Maximum Working Pressure (psi) | 450 | Flow Diameter | 0.39 Inch |
| Pkg Qty/UOM | 10 EA | Pkg Qty | 10 |
| Thread 1 | 1/2 NPT | Thread 2 | 1/2 NPT |
| Material | Chrome Plated Brass | Free Flow CV Factor | 5.6 |
| UOM | EA | Valve Type | Ball Valve |
| Parker Group | Fluid Connector | Material | Chrome Plated Brass |
| Parker Division | Fluid Systems Connector (Brass Products) | Configuration Type | Male to Female |
| Free Flow CV Factor | 5.6 | Material - Handle | Plastic |
| Flow Diameter | 0.39 Inch | Thread 1 Type | NPT |
| Series | MV608 | Max Pressure | 14 Bar (200 PSI) |
| Material - Seats/Seals | PTFE | Material - Ball | Chrome Plated Brass |
| Thread 1 | 1/2 NPT | Thread 2 Type | NPT |
| Material Stem O-Ring | Fluorocarbon | Operating Temperature | 0°F to +200°F |
| Thread 2 | 1/2 NPT | | |
