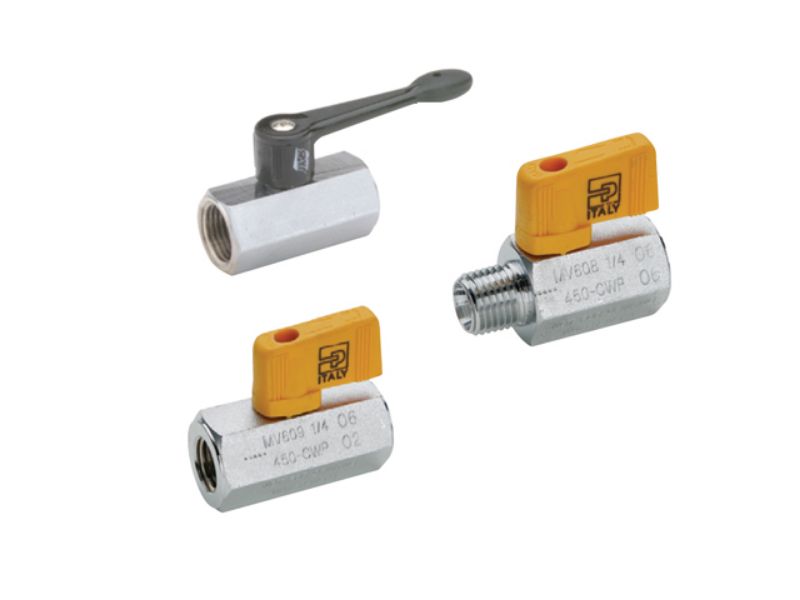

Parker MV608-4 - Industrial Ball Valves - Chrome Plated Brass Ball Valves

Name: Parker MV608-4 - Industrial Ball Valves - Chrome Plated Brass Ball Valves
SKU: MV608-4
Price: 26.37 USD
Availability: InStock

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:

109 In Stock

North Chesterfield, VA	30
Fayetteville, NC	14
Mooresville, NC	13
Sumter, SC	10
Jacksonville, FL	8
East Knoxville, TN	8
West Knoxville, TN	7
Norfolk, VA	6
Johnson City, TN	4 (Pickup only)
Ashland, VA	3 (Pickup only)
Summerville, SC	3
Richmond, VA	2 (Pickup only)
Greensboro, NC	1

Partner Available:

1428 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. MV608-4

$26.37/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Orifice Size	N/A
Specifications Met	N/A	Maximum Operating Pressure	450
Connection Size	1/4	Seal Material	PTFE
Actuation Type	Manual	Mounting Type	In-Line
Maximum Flow Rate	5.8	Operation Type	on/off
Body Material	Chrome Plated Brass	Minimum Operating Temperature	0
Product Type	Ball Valve	Division	Fluid System Connectors Division
Maximum Operating Temperature	200	Connection Type	NPT
Lock Type	Non-Locking	Ball Material	Chrome Plated Brass
Seat Material	PTFE	Function	2-Way
Handle Type	Compact	Configuration	In-Line
Connection 2 Thread Size (inch)	1/4	Connection 1 Thread Size (inch)	1/4
Connection 2 Thread Style	Female Pipe	Style	Male to Female Pipe Ends
Handle	Polyamide Wedge Lever	Connection 1 Thread Style	Male Pipe
Vacuum Rating (inch of Hg)	28	Maximum Working Pressure (Bar)	31
Maximum Working Pressure (psi)	450	Free Flow CV Factor	5.8
UOM	EA	Pkg Qty/UOM	10 EA
Flow Diameter	0.31 Inch	Pkg Qty	10
Thread 1	1/4 NPT	Material	Chrome Plated Brass
Thread 2	1/4 NPT	Parker Division	Fluid Systems Connector (Brass Products)
Flow Diameter	0.31 Inch	Thread 2 Type	NPT
Material - Ball	Chrome Plated Brass	Operating Temperature	0°F to +200°F
Material Stem O-Ring	Fluorocarbon	Free Flow CV Factor	5.8
Material - Handle	Plastic	Parker Group	Fluid Connector
Material	Chrome Plated Brass	Valve Type	Ball Valve
Thread 2	1/4 NPT	Series	MV608
Max Pressure	14 Bar (200 PSI)	Thread 1	1/4 NPT
Configuration Type	Male to Female	Material - Seats/Seals	PTFE
Thread 1 Type	NPT
