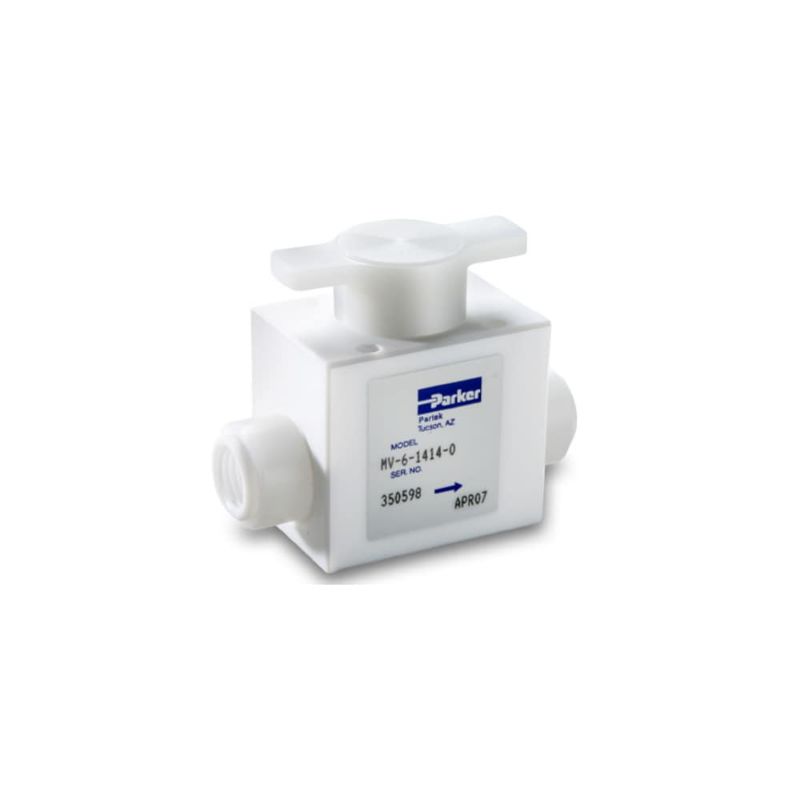

Picture of Parker MV-6-1818-0 - PTFE UHP Manual Ball Valve (sizes up to 1 inch) – MV-6 Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker MV-6-1818-0 - PTFE UHP Manual Ball Valve (sizes up to 1 inch) – MV-6 Series

The MV-6 Series PTFE Manual Ball Valve offers high cycle life and exceptional resistance to corrosion. It is designed full port for minimal flow restriction and is ideal for use in aggressive chemical applications (up to 120 psig).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. MV-6-1818-0
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Ambient Temperature5 °CFlow Coefficient93.97 L/min
Minimum Fluid Temperature5 °CLength2.24 inch
Non-Wetted MaterialHDPE, PVDF and PVCFlow RateCv 6.59 Cv
Maximum Fluid Temperature104 °FMaximum Ambient Temperature40 °C
Wetted MaterialPTFEPressure Rating25” HG vacuum (846 mbar) to 120 PSIG (8.3 bar)
DivisionVeriflo DivisionPort Connection Type1/2" FNPT
Flow Control2 WAY
