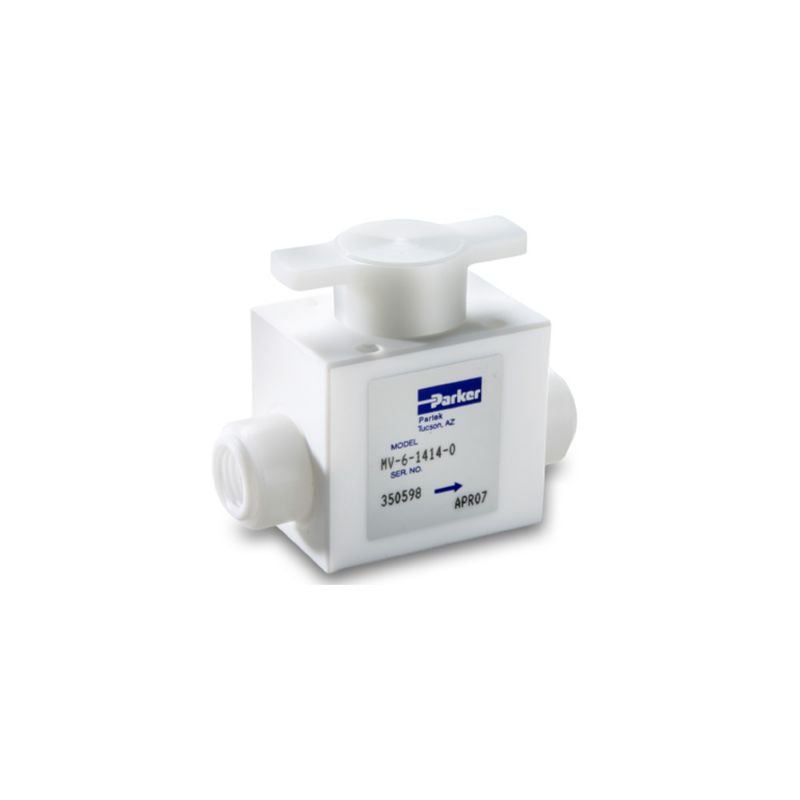

Parker MV-6-116116-0 - PTFE UHP Manual Ball Valve (sizes up to 1 inch) – MV-6 Series

The MV-6 Series PTFE Manual Ball Valve offers high cycle life and exceptional resistance to corrosion. It is designed full port for minimal flow restriction and is ideal for use in aggressive chemical applications (up to 120 psig).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MV-6-116116-0

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	Cv 28.06 Cv	Maximum Fluid Temperature	40 °C
Flow Coefficient	400.14 L/min	Division	Veriflo Division
Pressure Rating	25” HG vacuum (846 mbar) to 120 PSIG (8.3 bar)	Minimum Ambient Temperature	5 °C
Length	80.77 mm	Non-Wetted Material	HDPE, PVDF and PVC
Wetted Material	PTFE	Maximum Ambient Temperature	40 °C
Minimum Fluid Temperature	41 °F	Flow Control	2 WAY
Port Connection Type	1" FNPT

Product resources

Literature and Reference Materials

Veriflo Product Selection & Operation Safety Guide (PDF)
