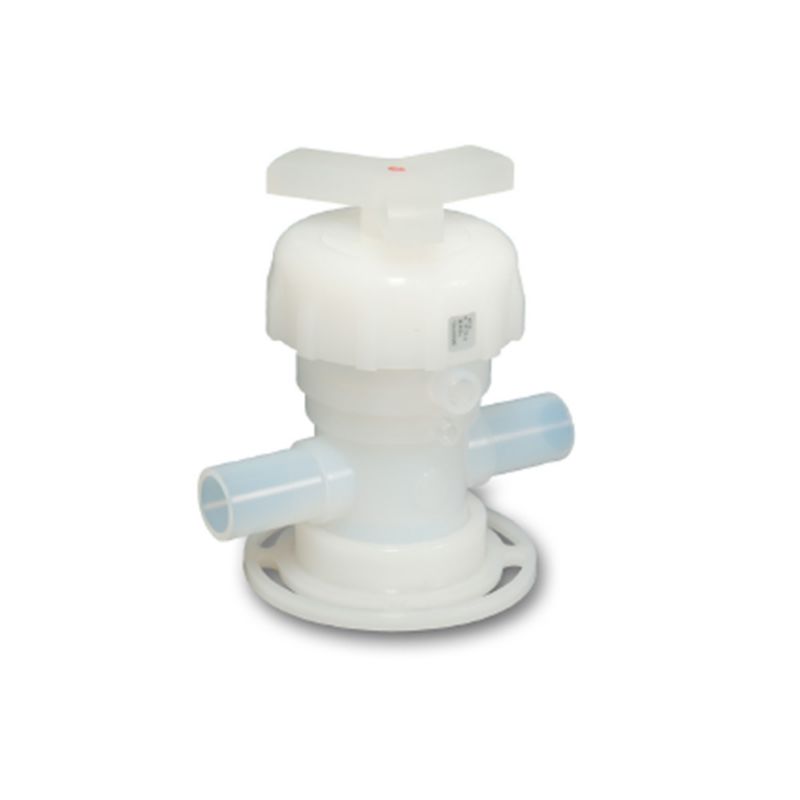

Parker MV-16-0612-01 - UHP PFA Manual Diaphragm (3/4 inch) 2 Way Valve – MV-16 Series

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MV-16-0612-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Fluid Temperature	-17	Flow Control	ON/OFF
Wetted Material	PFA, Modified PTFE	Non-Wetted Material	PVDF, Viton, PTFE Coated SS Spring
Maximum Ambient Temperature	66	Division	Veriflo Division
Maximum Fluid Temperature	130	Pressure Rating	0-120 psig (8.3 bar)
Flow Rate	Cv 5.8	Flow Coefficient	Kv 82.7
Minimum Ambient Temperature	-17	Length	6.48
Port Connection Type	3/4" Parflare Long	Nut Material	PVDF
