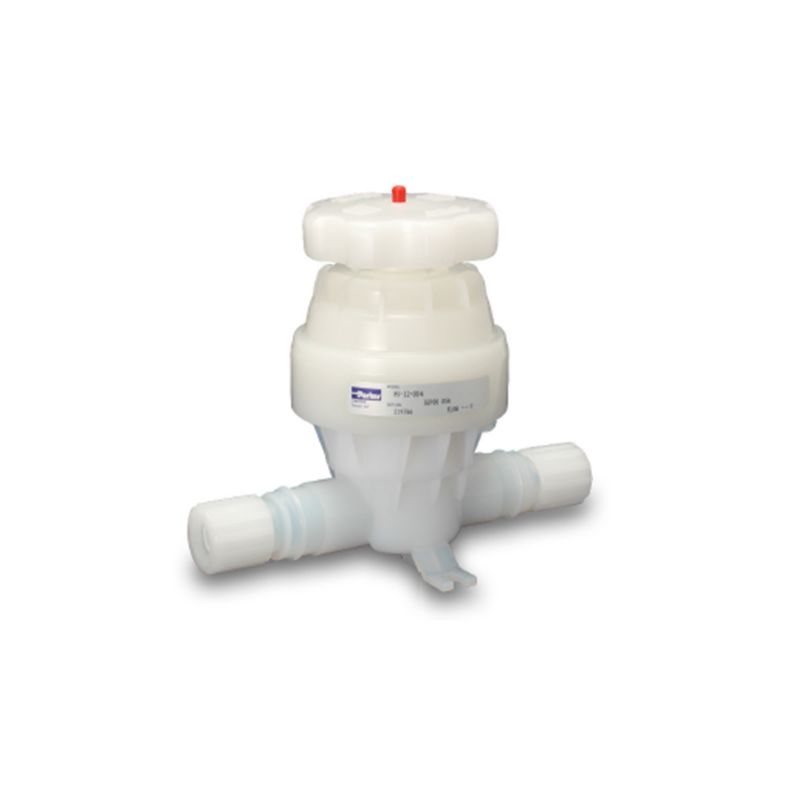

Parker MV-12-001 - UHP PFA Manual Diaphragm (1 inch) 2 Way Valve – MV-12 Series

The MV-12 Series PFA Diaphragm Valve offers high leak integrity and exceptional corrosion resistance. It is ideally suited for use in ultra-high purity (UHP) and aggressive fluid applications. Available in 2-way configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MV-12-001

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Rating	27" HG Vacuum (913 mbar) to 100 psig (7 bar) (Forward, Backwards)	Division	Veriflo Division
Minimum Fluid Temperature	-17 °C	Flow Rate	Cv 15.7 Cv
Non-Wetted Material	PFA, PVDF, Viton Seals, PTFE Coated SS Springs	Flow Coefficient	Kv 224.2 L/min
Flow Control	ON/OFF	Wetted Material	PFA, Modified PTFE
Maximum Fluid Temperature	130 °C	Minimum Ambient Temperature	-17 °C
Maximum Ambient Temperature	66 °C	Nut Material	PFA
Port Connection Type	1" Parbond
