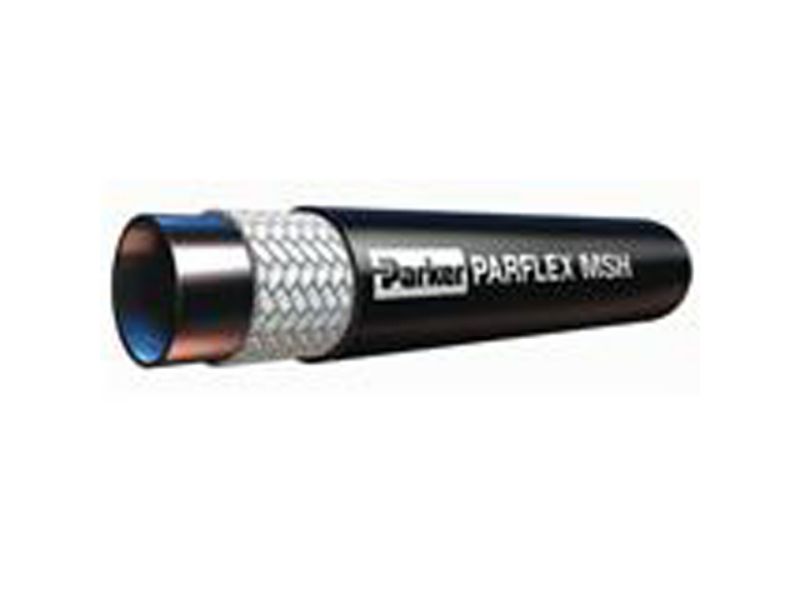

Parker MSH-5 - Marine Hose – Steering

Name: Parker MSH-5 - Marine Hose – Steering
SKU: MSH-5
Price: 2.91 USD
Availability: InStock

With fast, accurate response and a corrosion resistant thermoplastic construction, the Parker MSH marine hose is ideal for marine hydraulic steering systems. MSH hose is salt water resistant and 1000 psi.

AFP Availability:

476 In Stock

Norfolk, VA	427
Fayetteville, NC	40
Summerville, SC	8

Partner Available:

1588 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. MSH-5

$2.91/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Design Factor	4:1
Application	Hydraulics	Minimum Operating Temperature	-40 °C
Cover Material	Polyurethane	Maximum Operating Temperature	200 °F
Compatible Fitting	MS Series	Hose Inner Tube Material	Polyamide (PA)
Size	-5	Media	Petroleum Hydraulic Fluids
Outside Diameter	0.480 inch	Inside Diameter	5/16 inch
Division	Parflex Division	Hose Reinforcement Material	Fiber
Minimum Bend Radius	57 mm	Maximum Operating Pressure	6.9 MPa
Weight	0.05 lb/ft	Hose I.D. (inch)	5/16
Pkg Qty	600	Working Pressure	1000 PSI (70 bar)
Pkg Qty/UOM	600 FT	Inner Diameter	0.313 Inch
Material	Thermoplastic	Mating Fitting Series	108MS, 208MS
UOM	FT	Parker Group	Fluid Connector
Mating Fitting Series	108MS, 208MS	Hose Pressure Range	Medium
Parker Division	Parflex	Inch/Metric	Inch
Inner Diameter	0.313 Inch	Series	MSH
Inner Diameter Inch/mm	Inch	Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)
Application	Marine Steering	Material	Thermoplastic
