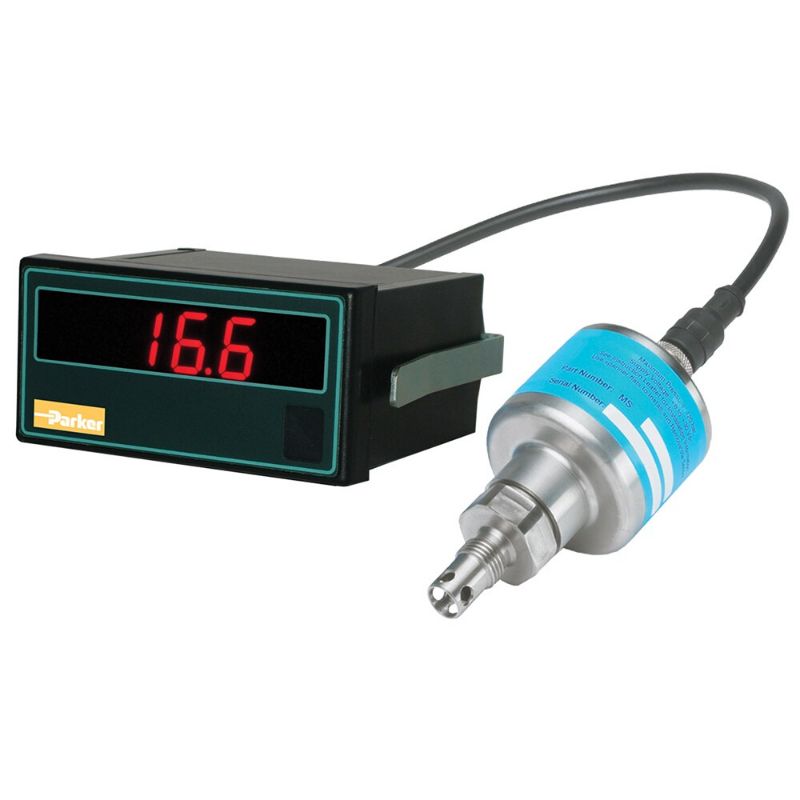

Parker MS2202410 - Fluid Moisture Sensor – iCountMS Range

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MS2202410

$1,302.68

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Stainless Steel 303
Product Series	iCountMS	Height	50 mm
Application	Industrial Hydraulics	For Fluid Type	Petroleum
Electrical Requirements	8 to 30 VDC	Operating Temperature	-40 to 85 °C
Accuracy	+/- 5 %	Minimum Fluid Temperature	-40 °C
Width	50 mm	Product Type	Condition Monitor
Seal Material	Fluorocarbon	Specifications Met	CE Certification
Ingress Protection Rating	IP68	Connection Size	M12X1 - 8 way
Weight	300 g	Division	Hydraulic & Industrial Process Filtration Division EMEA
Maximum Fluid Temperature	85 °C	Division	Hydraulic & Industrial Process Filtration Division EMEA
Brand	Parker	Operating Pressure	420 bar
Length	106 mm	Diameter	50 mm
Materials of Construction	Stainless Steel 303	Industry	Power Generation
Technology	Filtration	Product Style	Moisture Sensor
Sensing Method	Relative Humidity RH cell %	Signal Output	0-5 Vdc
Fluid Type	Petroleum, Synthetic Oils	Options	Programmable
Port Size	1/4"	Port Type	NPT Taper
