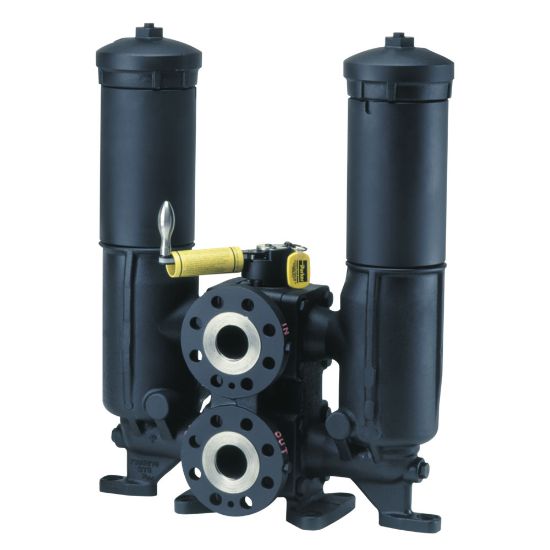

Parker MPD205QEM2M250Y91 - Medium Pressure Inline Duplex Filter MPD Series

The Parker MPD's innovative modular design provides solutions across a broad range of industrial applications. Allowable operating pressure of 1200 PSI/82.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MPD205QEM2M250Y91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	160.0 °F	Filter Element Type	Coreless
Compatible Element	935458Q	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Type	visual auto reset, visual auto reset	Options	None
Pressure Rating	81.6 bar	Micron Rating	05Q Microglass
Weight	129 kg	Bypass Valve Pressure Rating	50 psi
Housing Material	Ductile Iron and Steel	Mounting Style	Inline
Product Type	Hydraulic Filter	Port Type	2 inch SAE 4 bolt code 61 flange face
Indicator Pressure Setting	50 psi	Product Style	Hydraulic Filter
Flow Rate	150.0 Gal/min	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Flow Rate	150 gpm (567.8 lpm)
Seal Material	Nitrile	Micron Rating	05Q Microglass
Indicator Type	visual auto reset, visual auto reset	Bypass Valve Pressure Rating	50 psi (3.5 bar)
Port Connection Type	2 inch SAE 4 bolt code 61 flange face	Options	None
