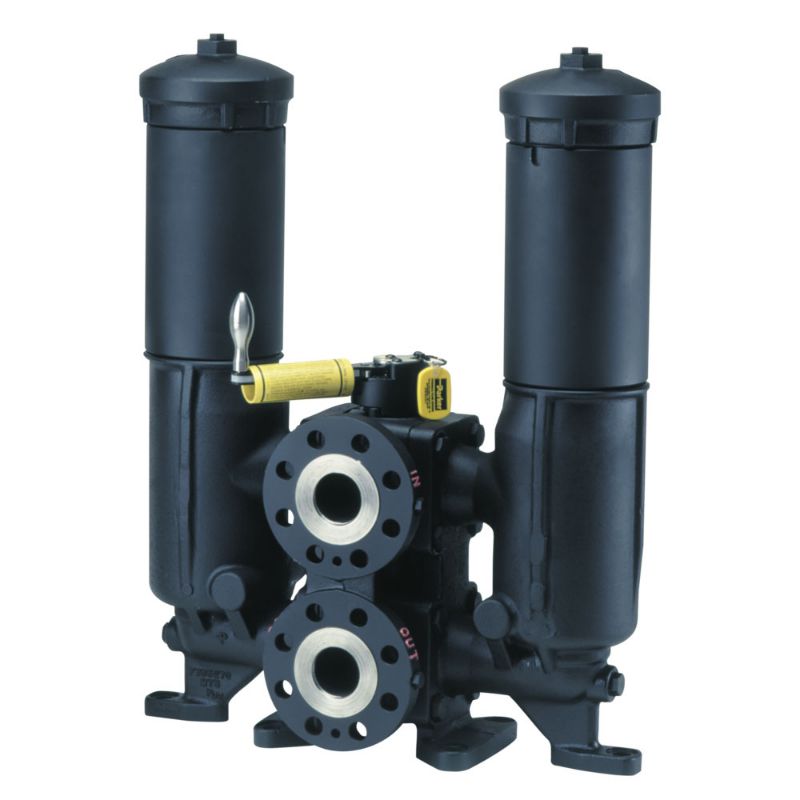

Parker MPD110QEE2E225Y91 - Medium Pressure Inline Duplex Filter MPD Series

The Parker MPD's innovative modular design provides solutions across a broad range of industrial applications. Allowable operating pressure of 1200 PSI/82.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MPD110QEE2E225Y91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	71.0 °C	Housing Material	Ductile Iron and Steel
Mounting Style	Inline	Port Type	2 inch SAE 4 bolt code 61 flange face
Product Style	Hydraulic Filter	Indicator Type	electrical with DIN 43650 connector, electrical with DIN 43650 connector
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Flow Rate	100.0 Gal/min	Compatible Element	935518Q
Product Type	Hydraulic Filter	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Weight	98 kg	Indicator Pressure Setting	1.7 bar
Pressure Rating	81.6 bar	Bypass Valve Pressure Rating	25 psi
Micron Rating	10Q Microglass	Options	None
Filter Element Type	Coreless	Flow Rate	100 gpm (378.5 lpm)
Options	None	Port Connection Type	2 inch SAE 4 bolt code 61 flange face
Indicator Type	electrical with DIN 43650 connector, electrical with DIN 43650 connector	Bypass Valve Pressure Rating	25 psi (1.7 bar)
Seal Material	Nitrile	Micron Rating	10Q Microglass

Product resources

Literature and Reference Materials
