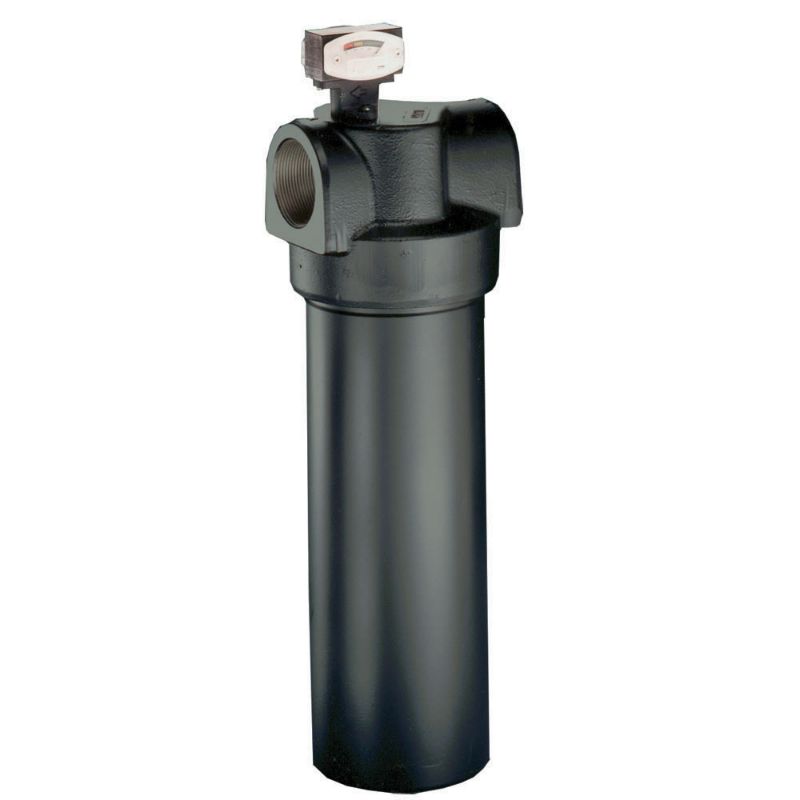

Parker MN8S-6QUG - Compressed Air and Gas - Up to 800 PSIG - M-Series

Parker’s Finite filters make it possible to improve process efficiency and provide optimal process protection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MN8S-6QUG

$2,403.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Height	18.6 inch
Element Removal Clearance	13.5 inch	Weight	4.71 kg
Brand	Finite	Maximum Operating Temperature	79 °C
Width	5.91 inch	Division	Industrial Gas Filtration and Generation Division
Compatible Element	6QU25-130	Maximum Flow Rate	4229 m3/hour at 55 barg
Thread Type	NPT	Maximum Flow Rate (cfm)	2489 at 800 psig
Length	Standard	Filter Type	Coalescing with Pre Filter
Pre-Installed Optional Accessories	Differential Pressure Gauge	Filter Rating (%)	99.97
Micron Rating (µm)	0.01	Element Seal Material	Urethane
Port Connection (inch)	2
