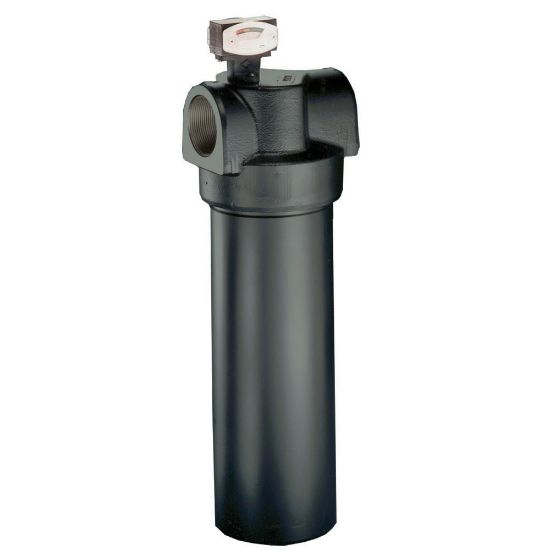

Parker MN8S-3PVN - Compressed Air and Gas - Up to 800 PSIG - M-Series

Parker’s Finite filters make it possible to improve process efficiency and provide optimal process protection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MN8S-3PVN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Element Removal Clearance	13.5 inch	Weight	4.71 kg
Compatible Element	3PV25-130	Height	18.6 inch
Brand	Finite	Maximum Operating Temperature	79 °C
Width	5.91 inch	Maximum Flow Rate	7250 m3/hour at 55 barg
Division	Industrial Gas Filtration and Generation Division	Element Seal Material	Fluorocarbon
Micron Rating (µm)	3	Maximum Flow Rate (cfm)	4267 at 800 psig
Filter Rating (%)	N/A	Thread Type	NPT
Pre-Installed Optional Accessories	None	Length	Standard
Filter Type	Particulate	Port Connection (inch)	2

Product resources

Literature and Reference Materials
