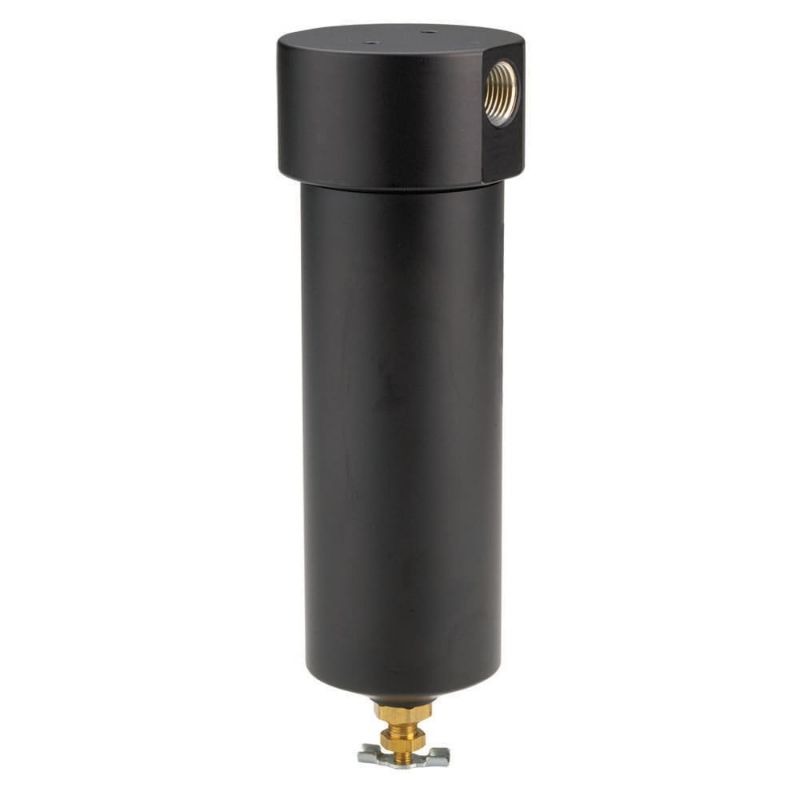

Parker MN4S-6QUG - Compressed Air and Gas - Up to 800 PSIG - M-Series

Parker’s Finite filters make it possible to improve process efficiency and provide optimal process protection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MN4S-6QUG

$1,711.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Industrial Gas Filtration and Generation Division
Height	10.83 inch	Maximum Operating Temperature	79 °C
Weight	2.22 kg	Brand	Finite
Width	4.55 inch	Compatible Element	6QU15-060
Maximum Flow Rate	1208 m3/hour at 55 barg	Element Removal Clearance	6.5 inch
Port Connection (inch)	1	Length	Standard
Filter Rating (%)	99.97	Micron Rating (µm)	0.01
Filter Type	Coalescing with Pre Filter	Pre-Installed Optional Accessories	Differential Pressure Gauge
Element Seal Material	Urethane	Thread Type	NPT
Maximum Flow Rate (cfm)	711 at 800 psig
