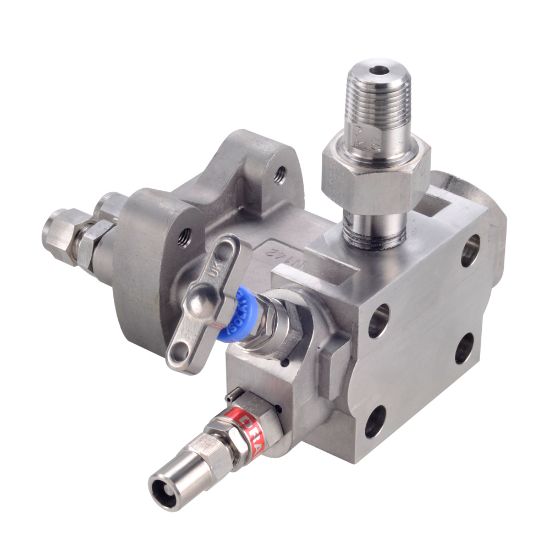

Parker MMHOMLS2L6098563251 - MESC Compliant Modular Manifolds

Parker's modular range of manifolds and accessories for small-bore instrumentation requirements that allow anyone to configure and order a complete integrated manifold and mounting solution for a process application in a few minutes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMHOMLS2L6098563251

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outlet Connection Size	1/2” NPT M	Maximum Operating Temperature	200 °C
Block Type	Single Isolate/Vent	Connection Type	Two Ferrule Compression Fitting
MESC Number	609856.325.1	Number of Valves	2 Valve
Division	Instrumentation Products Division	Packing Material	N/A
Vent Size	3/8"	Bolt Material	ASTM A193-B8 CL2
Maximum Operating Pressure	413 bar	Specifications Met	ISO 10474-3.1B
Material	316 Stainless Steel	Outlet Connection	1/2” NPT M
Connection Type	Two Ferrule Compression Fitting	Process/Vent Size	3/8"
MESC Number	609856.325.1
