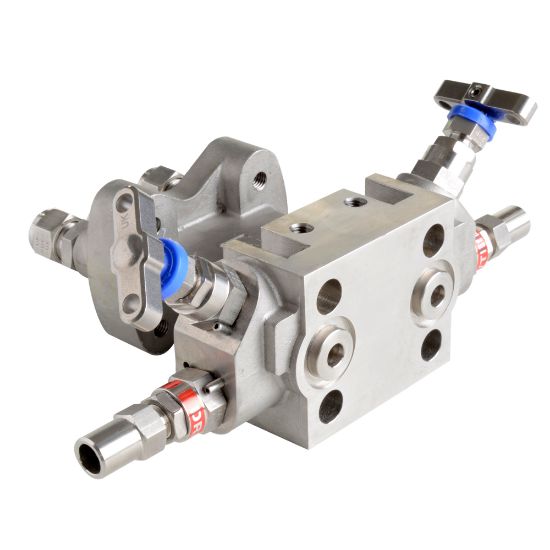

Parker MMHOMDS4B6098562151-PTFE - MESC Compliant Modular Manifolds

Parker's modular range of manifolds and accessories for small-bore instrumentation requirements that allow anyone to configure and order a complete integrated manifold and mounting solution for a process application in a few minutes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMHOMDS4B6098562151-PTFE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Number of Valves	4 Valve	Maximum Operating Temperature	200
Packing Material	PTFE	Division	Instrumentation Products Division
Outlet Connection Size	DIN 19213	Vent Size	10 mm
Specifications Met	ISO 10474-3.1B	Maximum Operating Pressure	400
Block Type	Double Isolate/Vent	MESC Number	609856.215.1
Bolt Material	ASTM A193-B8 CL2	Connection Type	Single Ferrule Compression Fitting
Outlet Connection	DIN 19213	MESC Number	609856.215.1
Process/Vent Size	10 mm	Material	316 Stainless Steel
Connection Type	Single Ferrule Compression Fitting
