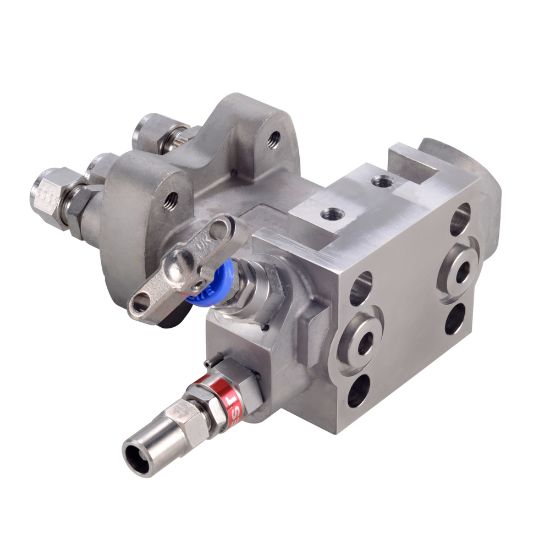

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker MMHOMDS2L6098562271-PTFE - MESC Compliant Modular Manifolds

Parker's modular range of manifolds and accessories for small-bore instrumentation requirements that allow anyone to configure and order a complete integrated manifold and mounting solution for a process application in a few minutes.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMHOMDS2L6098562271-PTFE

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Vent Size	3/8"	Division	Instrumentation Products Division
Outlet Connection Size	DIN 19213	Packing Material	PTFE
Block Type	Single Isolate/Vent	Maximum Operating Pressure	400
Maximum Operating Temperature	200	Connection Type	Two Ferrule Compression Fitting
Number of Valves	4 Valve	MESC Number	609856.227.1
Specifications Met	ISO 10474-3.1B	Bolt Material	ASTM A193-B8 CL2
Connection Type	Two Ferrule Compression Fitting	Process/Vent Size	3/8"
MESC Number	609856.227.1	Outlet Connection	DIN 19213
Material	316 Stainless Steel

Product resources

Compliance, Certifications & Safety

ABS Product Design Assessment - MESC Compliant Modular Mounting Systems (PDF)

Literature and Reference Materials
