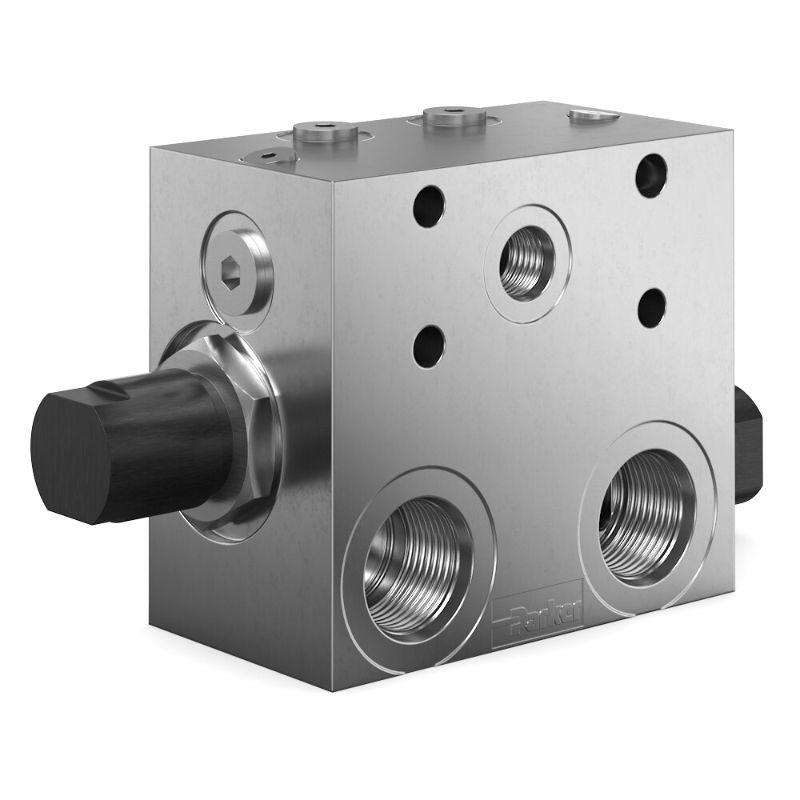

Parker MMB-025-DJMH-54N - Motor Control Valves

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMB-025-DJMH-54N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Systems Division	Function	Dual Motor Control
Body Material	Aluminum	Actuation Type	Pressure Sensing
Seal Material	Fluorocarbon	Operating Temperature	-15 to +400
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3000	Brake Release Pressure	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Manifold Mount
Valve Material	All parts steel. All operating parts hardened steel	Minimum Pilot Pressure	300
Configuration	Dual Motor Control (A & B)	Brake Release Port Size	N/A
Vented	No	Pilot Pressure Ratio	10:1
Leak Rate	5 @ 80% Holding Pressure	Maximum Flow Rate	25
Flow Rate	25	Weight	6.8
Maximum Operating Temperature	+400	Division	Hydraulic Valve Systems Division
Maximum Operating Pressure	3000	Operation Type	Automatic
Minimum Operating Temperature	-15	Holding Pressure	3000
Port Size	SAE-12	Pilot Pressure Ratio	10:1
Vented	No	Flow Rate	25 GAL/MIN, 93.75 L/MIN
Brake Release Pressure	N/A	Configuration	Dual Motor Control (A & B)
