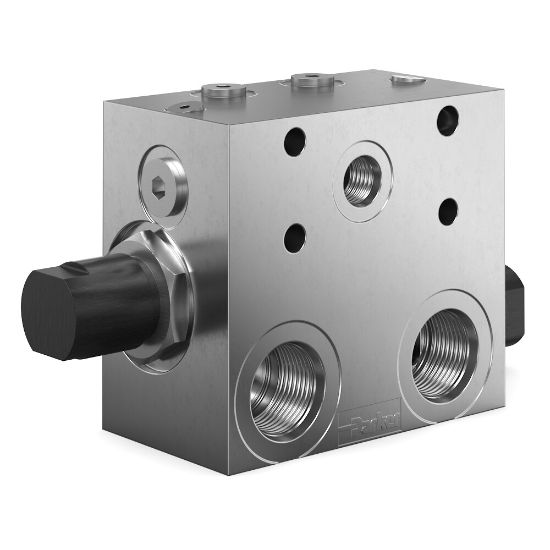

Parker MMB-025-AJMH-54N - Motor Control Valves

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMB-025-AJMH-54N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Leak Rate	5 @ 80% Holding Pressure	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Single Motor Control	Maximum Flow Rate	25
Flow Rate	25	Configuration	Motor Control on A port
Weight	3.4	Minimum Pilot Pressure	300
Brake Release Pressure	N/A	Port Size	SAE-12
Holding Pressure	3000	Vented	No
Pilot Pressure Ratio	10:1	Brake Release Port Size	N/A
Maximum Inlet Pressure Rating	3000	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Pressure	3000
Minimum Operating Temperature	-15	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	+400	Operation Type	Automatic
Mounting Type	Manifold Mount	Valve Material	All parts steel. All operating parts hardened steel
Body Material	Aluminum	Actuation Type	Pressure Sensing
Seal Material	Fluorocarbon	Operating Temperature	-15 to +400
Division	Hydraulic Systems Division	Pilot Pressure Ratio	10:1
Configuration	Motor Control on A port	Brake Release Pressure	N/A
Flow Rate	25 GAL/MIN, 93.75 L/MIN	Vented	No
