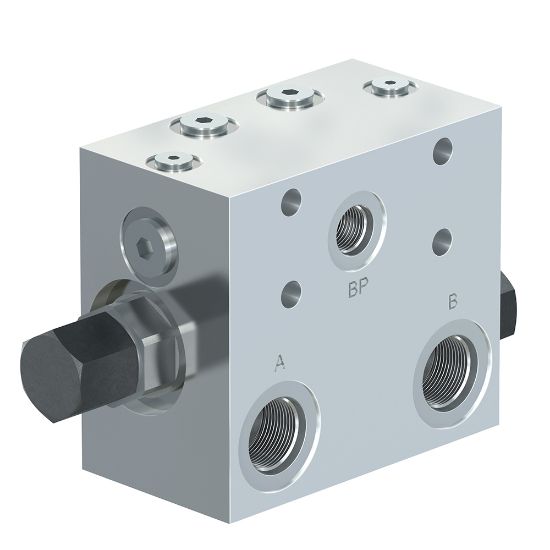

Parker MMB-015-DJMH-53N - Motor Control Valves

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMB-015-DJMH-53N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	3	Brake Release Port Size	N/A
Vented	No	Pilot Pressure Ratio	10:1
Configuration	Dual Motor Control (A & B)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	15	Leak Rate	5 @ 80% Holding Pressure
Division	Hydraulic Valve Systems Division	Operation Type	Automatic
Minimum Operating Temperature	-15	Maximum Operating Temperature	+400
Maximum Operating Pressure	3000	Holding Pressure	3000
Flow Rate	15	Actuation Type	Pressure Sensing
Seal Material	Fluorocarbon	Operating Temperature	-15 to +400
Port Size	SAE-10	Division	Hydraulic Systems Division
Function	Dual Motor Control	Body Material	Aluminum
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3000
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Minimum Pilot Pressure	300
Mounting Type	Manifold Mount	Brake Release Pressure	N/A
Valve Material	All parts steel. All operating parts hardened steel	Configuration	Dual Motor Control (A & B)
Brake Release Pressure	350 PSI, 24 BAR	Pilot Pressure Ratio	10:1
Flow Rate	15 GAL/MIN, 56.25 L/MIN	Vented	No
