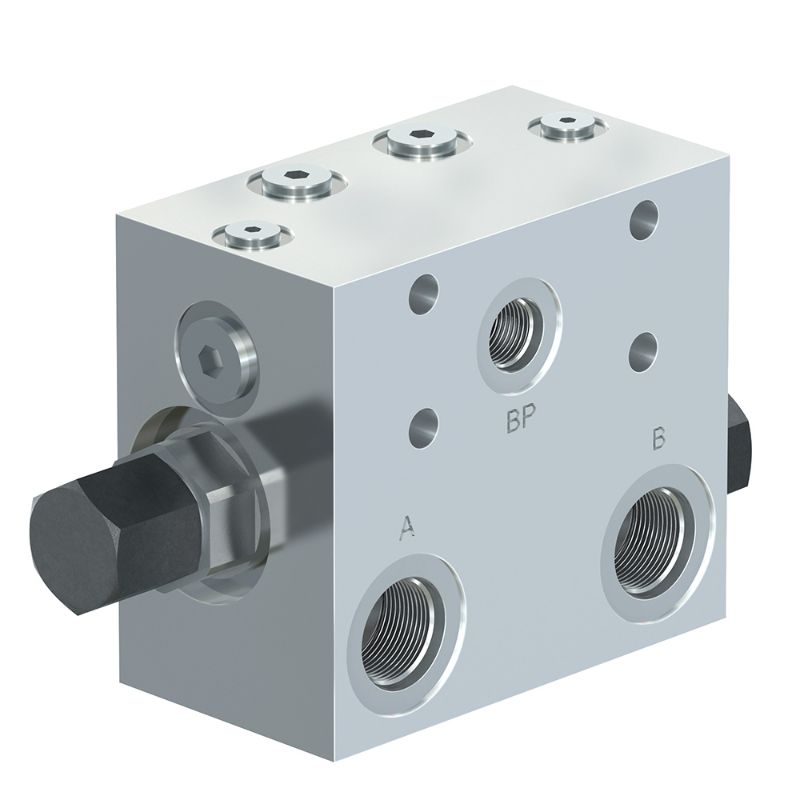

Parker MMB-015-BJMH-53B - Motor Control Valves

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMB-015-BJMH-53B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Function	Single Motor Control	Leak Rate	5 @ 80% Holding Pressure
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Weight	1.5	Mounting Type	Manifold Mount
Minimum Pilot Pressure	300	Flow Rate	15
Pilot Pressure Ratio	10:1	Brake Release Pressure	350
Maximum Flow Rate	15	Vented	No
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Motor Control on B port
Brake Release Port Size	SAE-6	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Holding Pressure	3000	Operation Type	Automatic
Maximum Operating Temperature	+400	Minimum Operating Temperature	-15
Division	Hydraulic Valve Systems Division	Maximum Operating Pressure	3000
Operating Temperature	-15 to +400	Division	Hydraulic Systems Division
Actuation Type	Pressure Sensing	Seal Material	Fluorocarbon
Port Size	SAE-10	Maximum Inlet Pressure Rating	3000
Body Material	Aluminum	Pilot Pressure Ratio	10:1
Flow Rate	15 GAL/MIN, 56.25 L/MIN	Vented	No
Brake Release Pressure	350 PSI, 24 BAR	Configuration	Motor Control on B port
