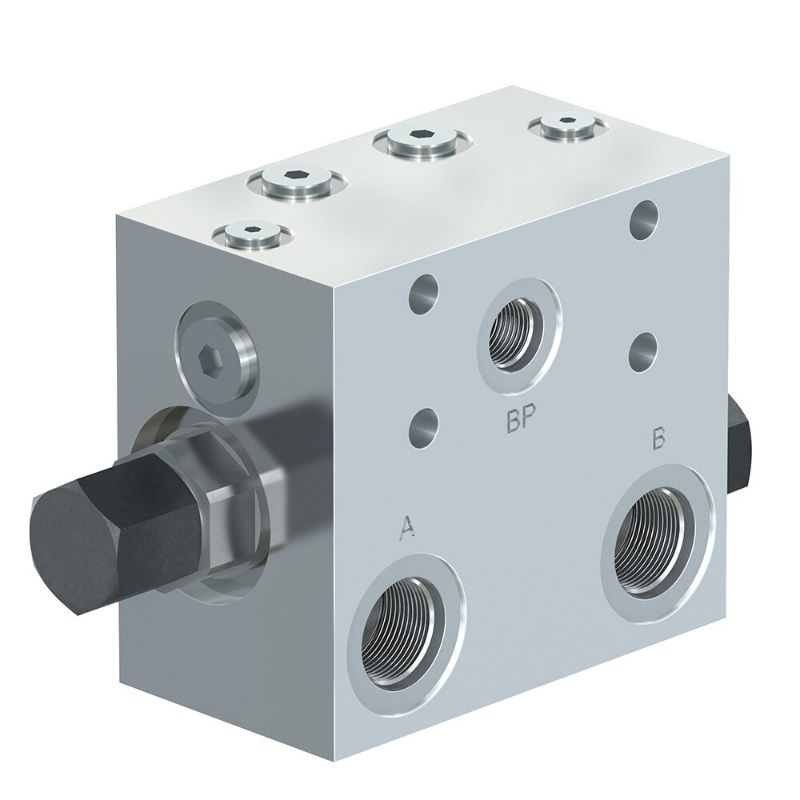

Parker MMB-015-BAMH-53B - Motor Control Valves

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MMB-015-BAMH-53B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division	Operation Type	Automatic
Maximum Operating Temperature	+400 °F	Leak Rate	5 @ 80% Holding Pressure drops/min
Maximum Operating Pressure	210 bar	Flow Rate	15 Gal/min
Maximum Inlet Pressure Rating	210 bar	Seal Material	Fluorocarbon
Actuation Type	Pressure Sensing	Division	Hydraulic Systems Division
Port Size	SAE-10	Body Material	Aluminum
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Pilot Pressure	21 bar
Brake Release Port Size	SAE-6	Configuration	Motor Control on B port
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	56.25 L/min
Brake Release Pressure	24 bar	Holding Pressure	3000 psi
Mounting Type	Manifold Mount	Valve Material	All parts steel. All operating parts hardened steel
Weight	1.5 lb	Vented	No
Pilot Pressure Ratio	1:1	Function	Single Motor Control
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-15 to +400 °F
Minimum Operating Temperature	-26 °C	Brake Release Pressure	350 PSI, 24 BAR
Configuration	Motor Control on B port	Pilot Pressure Ratio	1:1
Flow Rate	15 GAL/MIN, 56.25 L/MIN	Vented	No

Product resources

Literature and Reference Materials
