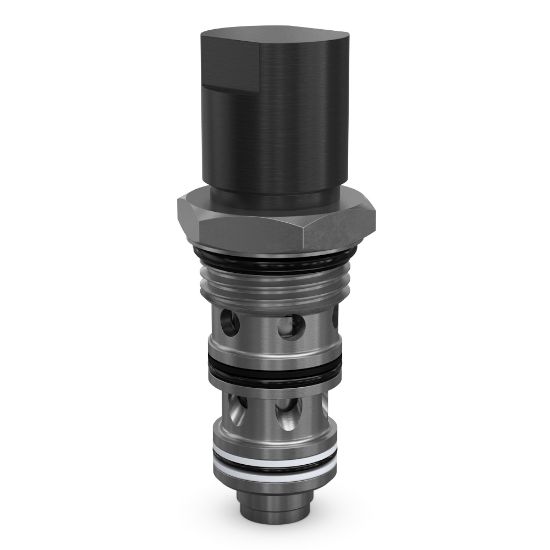

Parker MHC-022-VJSH-00F - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MHC-022-VJSH-00F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Cartridge Systems Division	Maximum Inlet Pressure Rating	5000 psi
Operating Temperature	-26 to +204 °C	Division	Hydraulic Systems Division
Mounting Type	Threaded Cartridge Valve	Body Material	n/a
Pressure Control Range	N/A bar	Holding Pressure	210 bar
Flow Rate	25 Gal/min	Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1
Seal Material	Fluorocarbon	Cavity Size	CDD-1036
Function	Counterbalance Valve	Actuation Type	Pilot Operated, Vented
Weight	0.38 kg	Maximum Operating Pressure	5000 psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Pilot Location	External	Pilot Pressure Ratio	10:1
Maximum Flow Rate	93.75 L/min	Installation Torque	75-80 lb-ft
Pressure Control Sensitivity	N/A bar	Leak Rate	5 @ 80% of setting drops/min
Minimum Operating Temperature	-15 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Adjustment Mechanism	Standard (adjustable)
Port Size	n/a	Maximum Operating Temperature	+400 °F
Port Size	n/a	Seal Material	Fluorocarbon
Pressure Control Range	N/A	Pilot Pressure Ratio	10:1
Maximum Flow Rate	25 GAL/MIN, 93.75 L/MIN	Mounting Type	Threaded Cartridge Valve
Adjustment Mechanism	Standard (adjustable)	Holding Pressure	3000 PSI, 210 BAR
