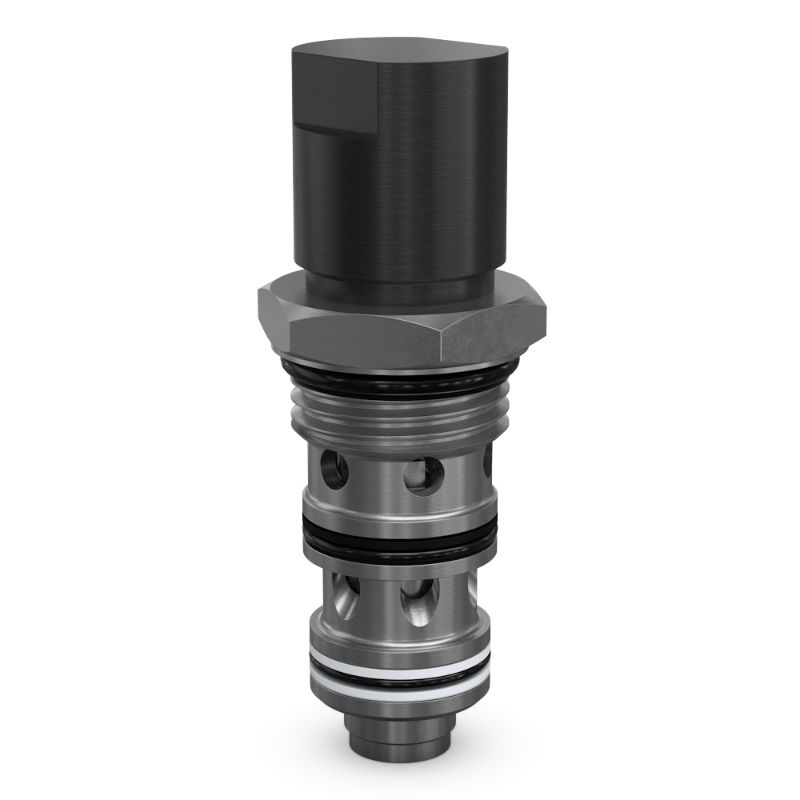

Parker MHC-022-SJNH-00B - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. MHC-022-SJNH-00B

$181.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Actuation Type	Pilot Operated	Port Size	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	350 bar	Flow Rate	25 Gal/min
Maximum Inlet Pressure Rating	5000 psi	Function	Counterbalance Valve
Mounting Type	Threaded Cartridge Valve	Holding Pressure	210 bar
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.38 kg
Leak Rate	5 @ 80% of setting drops/min	Pilot Pressure Ratio	10:1
Pressure Control Sensitivity	N/A psi	Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1
Adjustment Mechanism	Shimmed (non-adjustable)	Pressure Control Range	N/A psi
Cavity Size	CDD-1036	Maximum Flow Rate	93.75 L/min
Installation Torque	102-108 Nm	Seal Material	Nitrile
Port Size	n/a	Mounting Type	Threaded Cartridge Valve
Holding Pressure	3000 PSI, 210 BAR	Pilot Pressure Ratio	10:1
Adjustment Mechanism	Shimmed (non-adjustable)	Pressure Control Range	N/A
Maximum Flow Rate	25 GAL/MIN, 93.75 L/MIN
