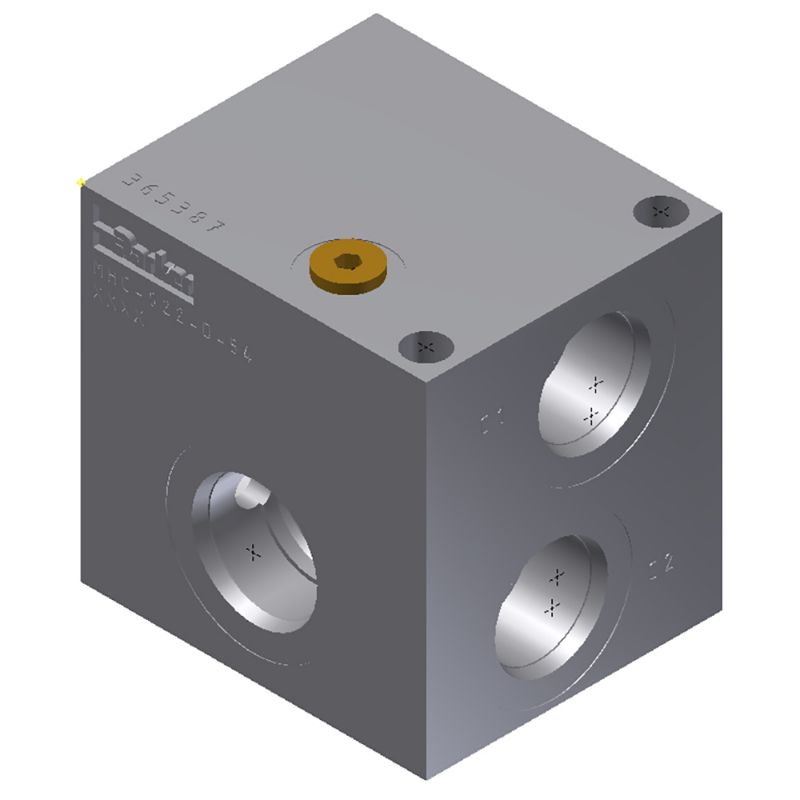

Parker MHC-022-D-53 - Counterbalance Bodies

Parker’s custom bodies to be used specifically with Parker’s MHC-010 and MHC-022 counterbalance cartridge valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MHC-022-D-53

$286.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Number of Positions	3 way	Port Thread Size	5/8" Work, 3/8" Pilot
Number of Cavities	Dual	Weight	5.9 lb
Cavity Size	CDD-1036	Port Thread Size	5/8"
Cavity Size	CDD-1036
