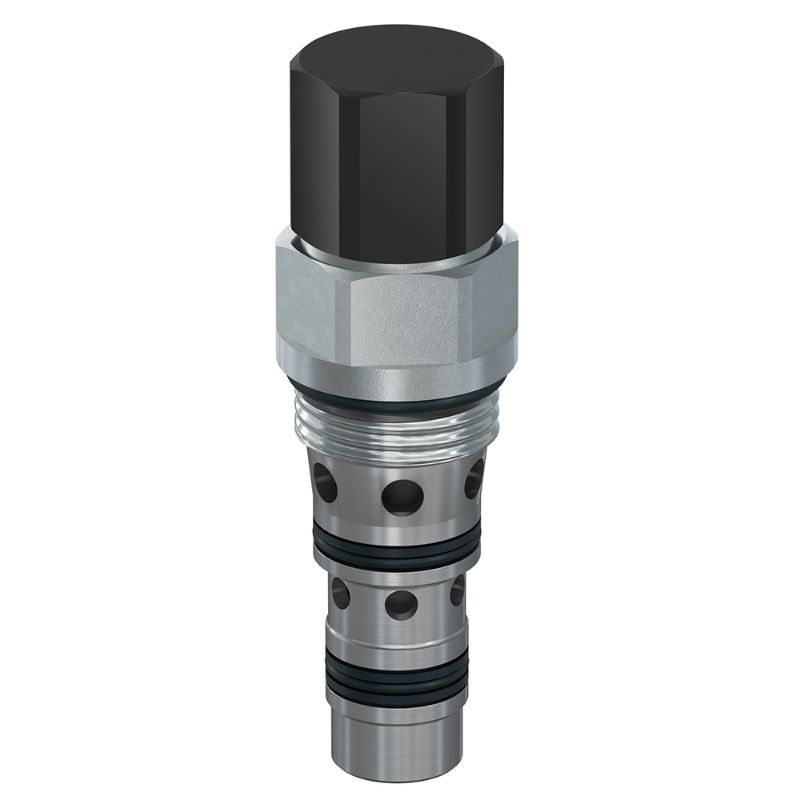

Parker MHC-010-SBSH-00B - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MHC-010-SBSH-00B

$185.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	CDD-1010
Division	Hydraulic Cartridge Systems Division	Pressure Control Range	N/A psi
Maximum Operating Temperature	+121 °C	Port Size	N/A
Leak Rate	5 @ 80% of setting drops/min	Adjustment Mechanism	Standard (adjustable)
Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1	Maximum Inlet Pressure Rating	5000 psi
Function	Counterbalance Valve	Pilot Pressure Ratio	4:1
Pressure Control Sensitivity	N/A psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Pilot Operated	Holding Pressure	3000 psi
Flow Rate	10 Gal/min	Weight	0.88 lb
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Pressure	5000 psi	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Flow Rate	37.5 L/min
Body Material	N/A	Operating Temperature	-34 to +121 °C
Mounting Type	Threaded Cartridge Valve	Minimum Operating Temperature	-34 °C
Installation Torque	68-75 Nm	Division	Hydraulic Systems Division
Pilot Location	External	Seal Material	Nitrile
Port Size	n/a	Mounting Type	Threaded Cartridge Valve
Holding Pressure	3000 PSI, 210 BAR	Maximum Flow Rate	10 GAL/MIN, 37.5 L/MIN
Adjustment Mechanism	Standard (adjustable)	Pilot Pressure Ratio	4:1
Pressure Control Range	N/A
