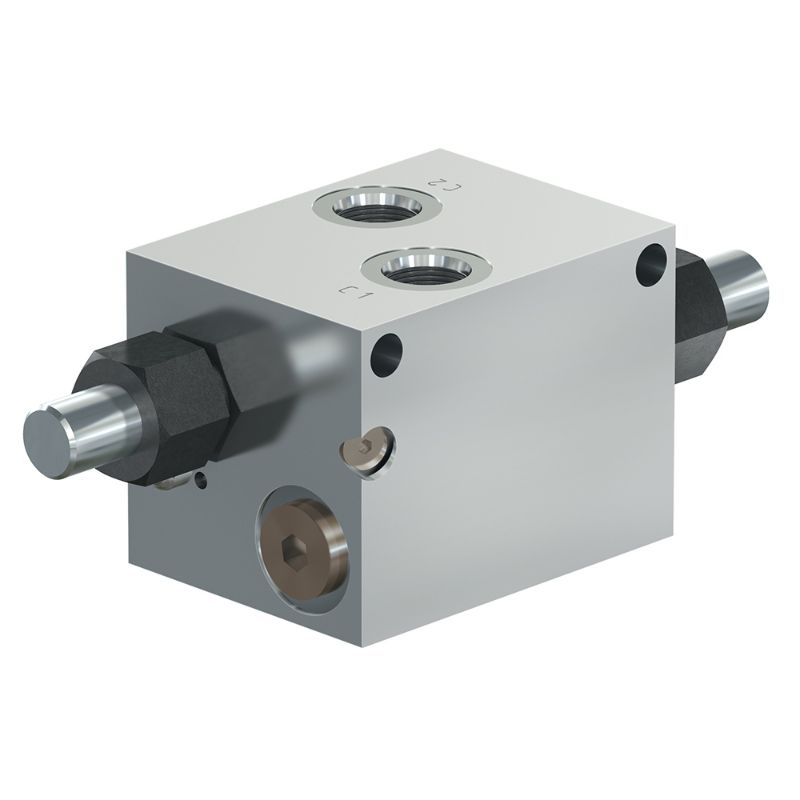

Parker MHB-030-LEDH-52N - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MHB-030-LEDH-52N

$463.88

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Actuation Type	Pilot Operated	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Pilot Location	Internal
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Body Material	Aluminum	Maximum Operating Pressure	210 bar
Cavity Size	n/a	Adjustment Mechanism	Tamper Resistant
Maximum Flow Rate	30 Gal/min	Weight	4.5 lb
Function	Counterbalance Valve	Holding Pressure	210 bar
Maximum Inlet Pressure Rating	210 bar	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate	30 Gal/min	Installation Torque	N/A Nm
Leak Rate	5 @ 80% of setting drops/min	Port Size	SAE-8
Mounting Type	Double Inline	Flow Direction	Cylinder port C, Valve port V
Pilot Pressure Ratio	6:1	Pressure Control Range	105-210 bar
Pressure Control Sensitivity	N/A bar	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Holding Pressure	3000 PSI, 210 BAR
Port Size	SAE-8	Mounting Type	Double Inline
Pilot Pressure Ratio	6:1	Pressure Control Range	1500-3000 PSI, 105-210 BAR
Maximum Flow Rate	30 GAL/MIN, 112.5 L/MIN
