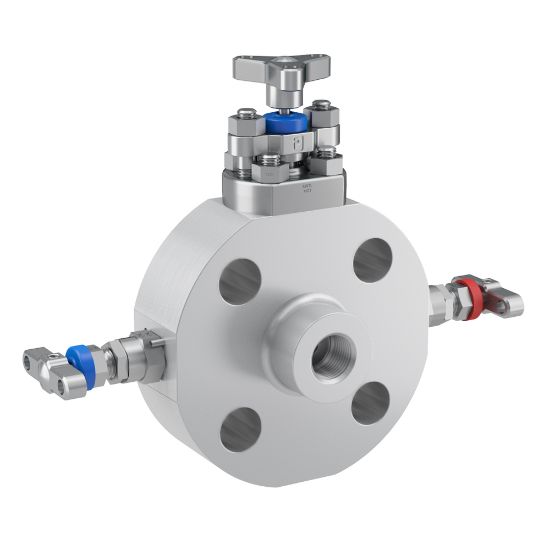

Parker MFY100H8F900F - Monoflange Process to Instrument Valve

Parker's Monoflange is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MFY100H8F900F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	OS & Y	Bore Diameter	5
Seal Material	Graphoil	Maximum Operating Pressure	2220
Vent Plug Thread Size	1/4" NPT F	Minimum Operating Temperature	-54
Specifications Met	Fire Safe	Outlet Connection Size	1/2" NPT F
Application	Instrument Isolation, In Situ Calibration, Inline Process Isolation, Chemical Injection, Process Sampling	Flow Rate	n/a
Flange Face Type	Raised Face Spiral	Configuration	Block-Block-Bleed
Connection Size	1/2" NPT F	Maximum Operating Temperature	538
Handle Type	Stainless Steel Lever	Flange Size	1/2"
Seat Material	Carbon Steel	ANSI Flange Class	900
For Fluid Type	General Gaseous and Liquid Media	Body Material	Carbon Steel
Division	Instrumentation Products Division
