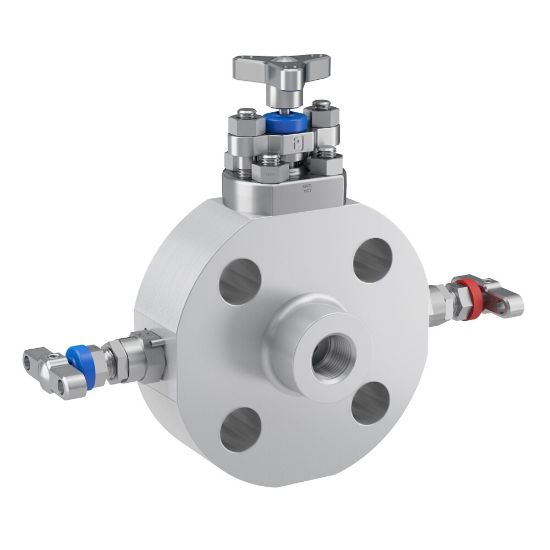

Parker MFY100B24F2500N - Monoflange Process to Instrument Valve

Parker's Monoflange is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MFY100B24F2500N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	General Gaseous and Liquid Media	Flange Face Type	Raised Face Spiral
Connection Size	1/2" NPT F	Division	Instrumentation Products Division
Seal Material	PTFE	Body Material	316 Stainless Steel
Vent Plug Thread Size	1/4" NPT F	Handle Type	Stainless Steel Lever
Maximum Operating Pressure	6000	Seat Material	316 Stainless Steel
Specifications Met	NACE	Flow Rate	n/a
Minimum Operating Temperature	-29	Bore Diameter	5
Application	Instrument Isolation, In Situ Calibration, Inline Process Isolation, Chemical Injection, Process Sampling	Valve Type	OS & Y
Configuration	Block-Block-Bleed	Maximum Operating Temperature	400
ANSI Flange Class	2500	Outlet Connection Size	1/2" NPT F
Flange Size	1 1/2"
