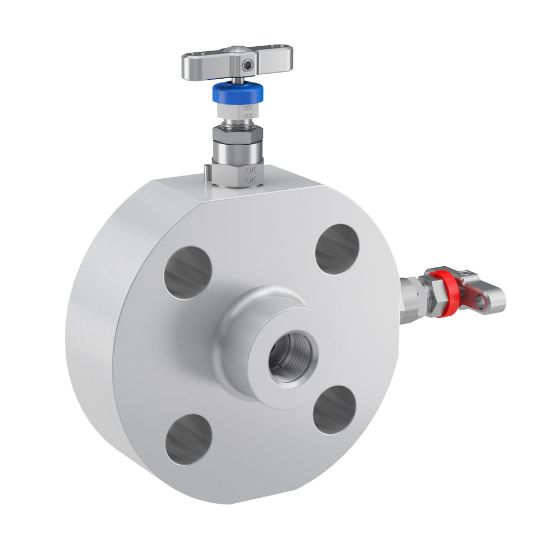

Picture of Parker MFH120B12F600 - Monoflange Process to Instrument Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker MFH120B12F600 - Monoflange Process to Instrument Valve

Parker's Monoflange is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. MFH120B12F600
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection Size1/2" NPT F inchMinimum Operating Temperature-20 °F
Flow Raten/aApplicationInstrument Isolation, In Situ Calibration, Inline Process Isolation, Chemical Injection, Process Sampling
Bore Diameter5 mmFlange Size3/4" inch
ANSI Flange Class600Maximum Operating Pressure99 bar
For Fluid TypeGeneral Gaseous and Liquid MediaValve TypeNeedle Valve
Flange Face TypeRaised Face SpiralVent Plug Thread Size1/4" NPT F inch
Maximum Operating Temperature204 °CDivisionInstrumentation Products Division
Outlet Connection Size1/2" NPT F inchSeal MaterialPTFE
Body Material316 Stainless SteelConfigurationBlock-Bleed
Specifications MetAPI 6A, API 607, PRL 2, PSL 2, PSL 3, PSL 4, TAMAP, MESC SPE 77/312Handle TypeStainless Steel Lever
Seat Material316 Stainless Steel
