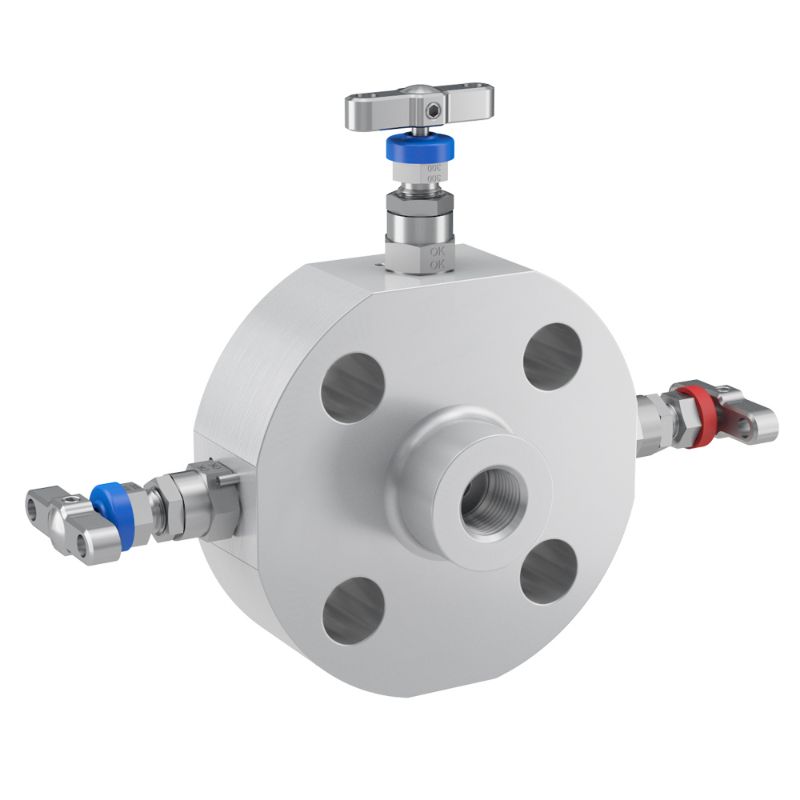

Parker MFH100B12F2500N - Monoflange Process to Instrument Valve

Parker's Monoflange is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MFH100B12F2500N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Minimum Operating Temperature	-29
Bore Diameter	5	Application	Instrument Isolation, In Situ Calibration, Inline Process Isolation, Chemical Injection, Process Sampling
Vent Plug Thread Size	1/4" NPT F	Seal Material	PTFE
Body Material	316 Stainless Steel	Flange Size	3/4"
Outlet Connection Size	1/2" NPT F	Specifications Met	NACE
Flange Face Type	Raised Face Spiral	Division	Instrumentation Products Division
Connection Size	1/2" NPT F	ANSI Flange Class	2500
Configuration	Block-Block-Bleed	Maximum Operating Temperature	400
Seat Material	316 Stainless Steel	Maximum Operating Pressure	6000
Handle Type	Stainless Steel Lever	Valve Type	Needle Valve
For Fluid Type	General Gaseous and Liquid Media
