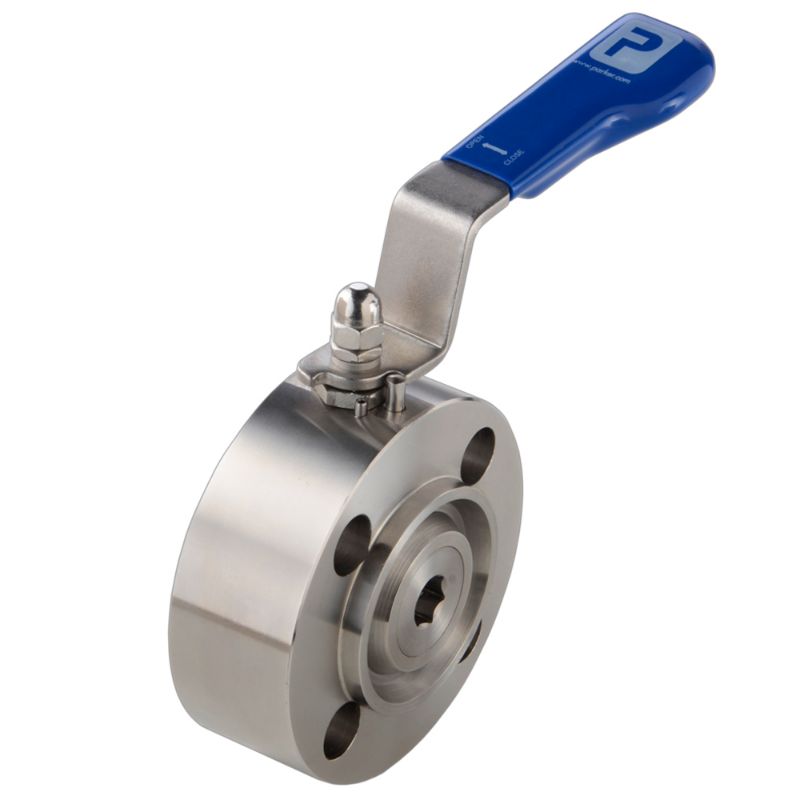

Parker MBV150B32T018 - Wafer Style Valve - Monoball Series

Parker’s wafer style valve Monoball is a one-piece design flanged ball valve that is lighter and more compact than conventional flange-to-flange mounted ball valve.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MBV150B32T018

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flange Face Type	Ring Type Joint	Packing Material	PTFE as standard, Graphite packing fitted as standard for Fire Safe option (API 607/BS6755 Pt2)
Installation	Standard Flange Holes	Connection Type	NPT Female
Seat Material	PTFE as standard. PEEK optional. 15 mm bore offered with PEEK seats only	Connection Size	1/2"
Valve Configuration	Block (Flange x Screw)	Handle Type	Optional Lockable Handle
Materials of Construction	316 Stainless Steel	ANSI Flange Class	150
Bore Diameter	25	Specifications Met	Optional Fire Safe (with Graphite packing material) and NACE (316 Stainless Steel only)
Flange Size	2"	Division	Instrumentation Products Division
Material	316 Stainless Steel	ANSI Flange Class	150
Installation	Standard Flange Holes	Connection Style	NPT Female
Connection Size	1/2"	Bore Size (mm)	25 mm
Flange Face	Ring Type Joint	Valve Configuration Type	Block (Flange x Screw)
Flange Size (inch)	2"
