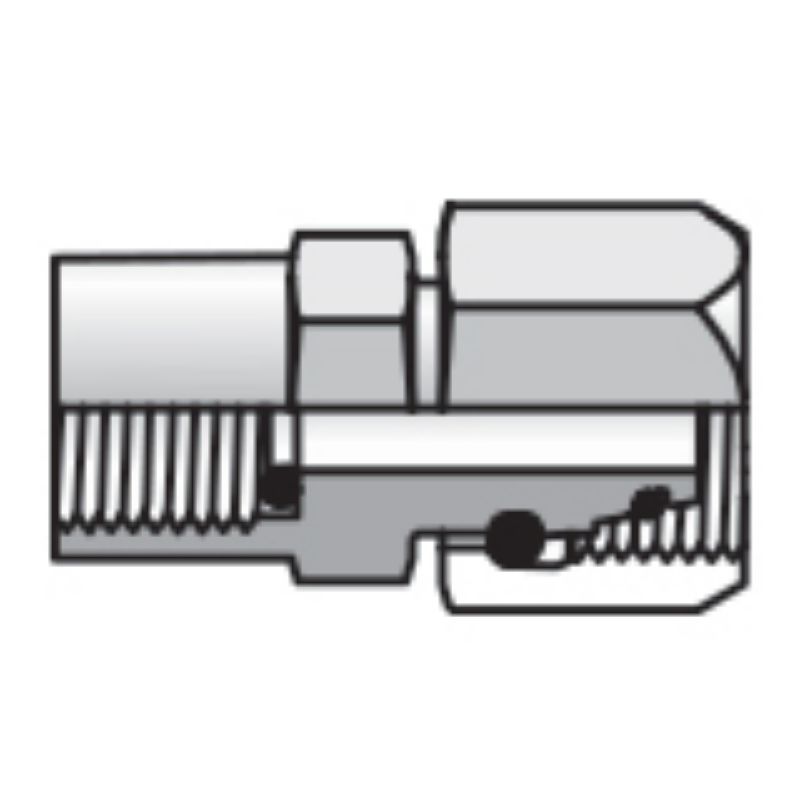

Parker MAVE06SRCF - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MAVE06SRCF

$52.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	BSPP Pressure Gauge Adapter
Division	Tube Fittings Division	Maximum Dynamic Pressure	9100 psi
Maximum Static Pressure	9100 psi	Body Material	Steel
Connection 1 Tube O.D. (mm)	6S	O-Ring Material	NBR
Connection 2 Thread Size (mm)	na	Connection 1 Tube O.D. (inch)	na
Connection 3 Style	na	Connection 2 Style	Female BSPP with Sealing Washer
Connection 2 Tube O.D. (mm)	na	Connection 1 Style	Male 24° Metric Flareless Swivel
Connection 3 Thread Size (inch)	na	Connection 3 Thread Size (mm)	na
Connection 2 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	1/2-14
Body Material	Steel

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
