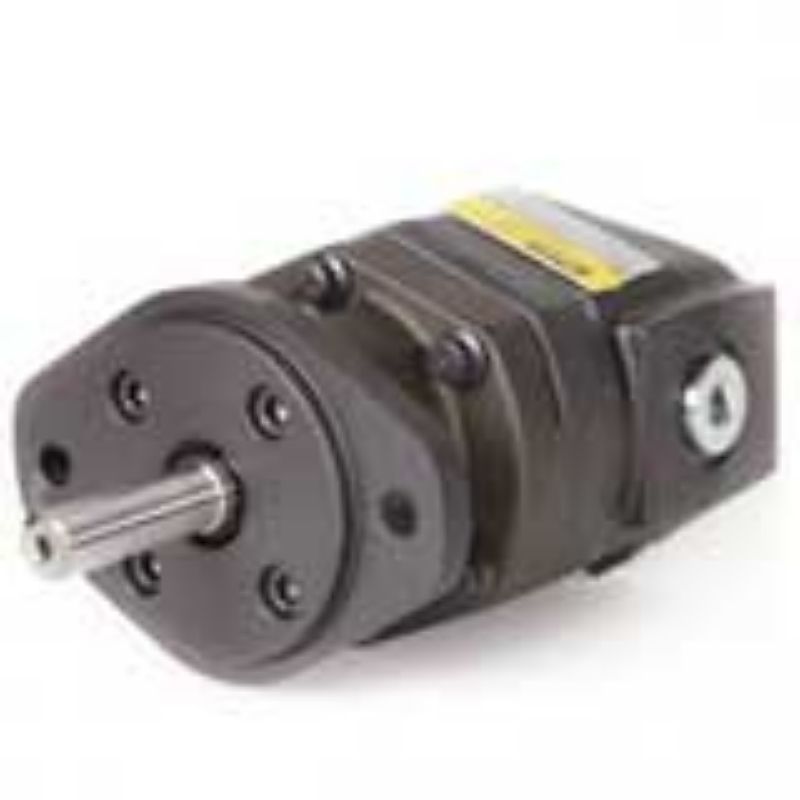

Parker M4 - High Speed Motor - Nichols™ M4 Series

The Nichols™ M4 high speed gerotor motor has a wide range of smooth operating speeds. Capable of running on low viscosity fluids, it has high starting torque. Intermittent pressures of 2400 psi, torque to 340 lb-in. Speed ranges from 30 to 7500 rpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Pump & Motor Division	Displacement	2.45 to 12.29 cm3/rev (Motor)
Maximum Output Torque	48 to 270 lb-inch Intermittent (39 to 230 Continuous)	Maximum Pressure Differential	2400 psi Intermittent (2000 Continuous)
Brand	Nichols™	Maximum Operating Speed	3000 to 7500 RPM at Intermittent Flow
Shaft Diameter	0.625 inch	Minimum Starting Torque	43 to 253 lb-inch Intermittent (40 to 313 Continuous)
Maximum Flow Rate	21 to 42 L/min Intermittent (21 to 42 Continuous)
