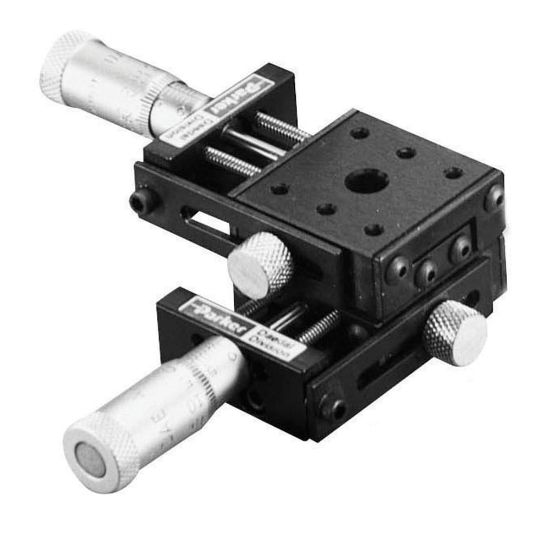

Parker M3952 - Manual Driven, Ball Bearing Guided, Miniature Linear Positioning Stages - 3900 Series

3900-series miniature ball-bearing guided manual linear positioners have an integral drive mechanism and offer travels of up to 0.5", payloads up to 6 lbs, plus exceptional smoothness, extremely low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M3952

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Option	Side Drive	Number of Axes	1
Width	31.8 mm	Maximum Travel	(imperial)
Load Capacity	0 to 149 lb	Division	Electronic Motion and Controls Division
Product Series	3900 Series	Bearing Type	Ball
Product Type	Linear Stage	Drive Train Type	Imperial Micrometer
Travel (mm)	(imperial)	Travel (inch)	0.5
Type	Metric Model / Side Drive	Axis Count	1
Drive Mechanism	Imperial Micrometer
