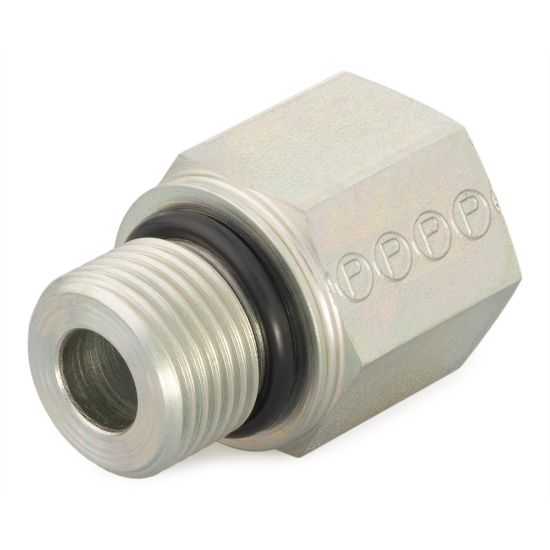

Parker M27M22F87OHG87MS FKM - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M27M22F87OHG87MS FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Dynamic Pressure	5000 psi	Connection 4 Thread Size	na
Division	Tube Fittings Division	Fitting Type	Pipe Adapter
Connection 4 Size	na	Body Material	Steel
Connection 2 Thread Size (mm)	M22X1.5	Shape	Straight
Connection 1 Thread Size (inch)	na	Connection Style	ISO 6149 to ISO 6149
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 2 Style	Female ISO 6149
Connection 2 Thread Size (inch)	na	Connection 3 Thread Size (inch)	na
Connection 1 Thread Size (mm)	M27X2	Connection 1 Style	Male ISO 6149
O-Ring Material	90 Durometer Fluorocarbon

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
