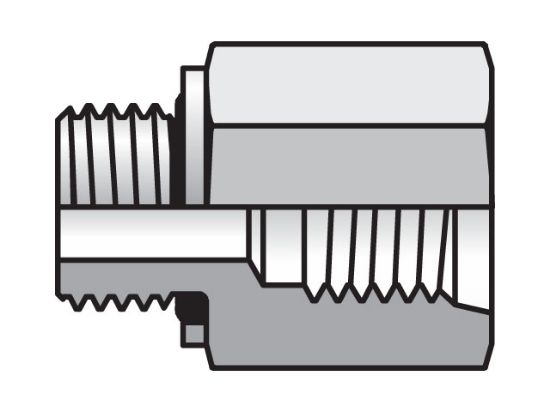

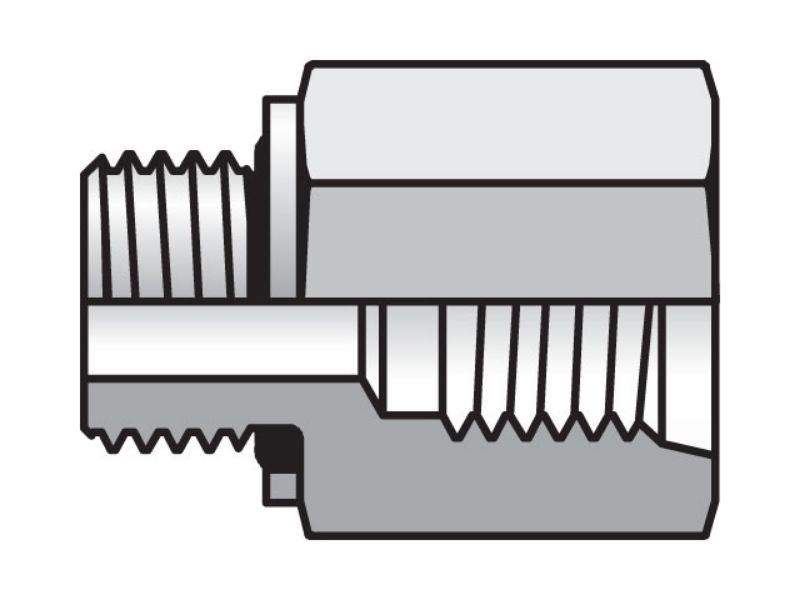

Parker M22-10F8OHG5S - Reducer, Expander, Conversion F8OHG5

Conversion Adapter Metric-ORR / SAE-ORB (for ISO 9974 / DIN 3852-1 Port)

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. M22-10F8OHG5S

$53.28

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
End 2	7/8-14 UN/UNF-2B	UOM	EA
Pkg Qty/UOM	2 EA	End 1	M22x1.5 Metric
Pkg Qty	2	Parker Group	Fluid Connector
Tube Fitting/Adapter Type	Conversion	End 1	M22x1.5 Metric
End 1 Type	Metric	Inch/Metric	Metric
Configuration Type	Reducer, Expander, Conversion	Configuration Sub-Type	Conversion Adapter Metric-ORR / SAE-ORB (for ISO 9974 / DIN 3852-1 Port)
Material	Steel	Parker Division	Tube Fitting
End 2 Type	UN/UNF-2B	Series	Conversion
End 2	7/8-14 UN/UNF-2B

Product resources

Pipe Fittings and Adapters (PDF)
