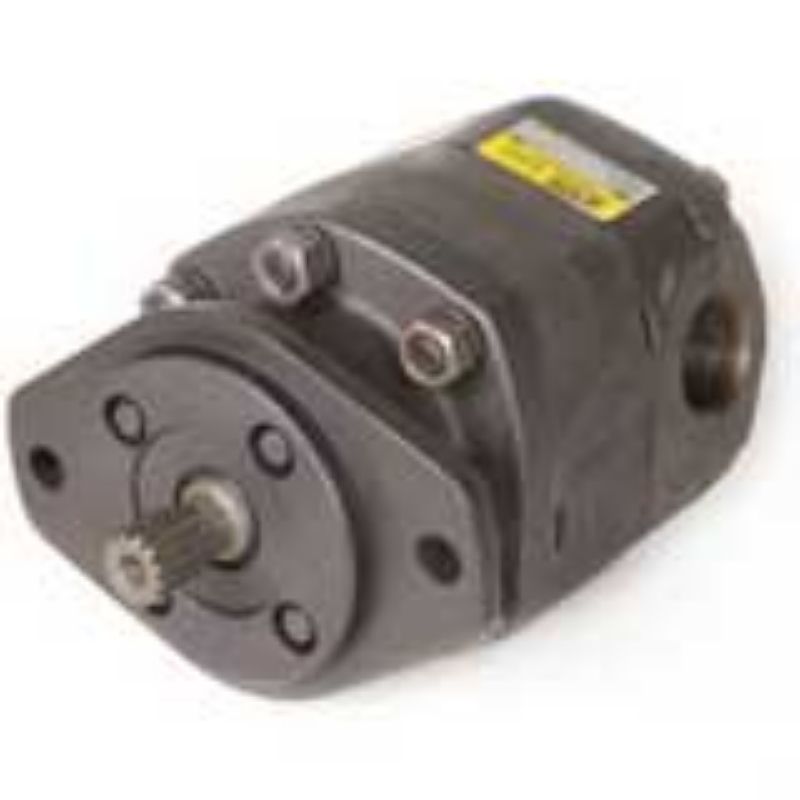

Parker M2 - High Speed Motor - Nichols™ M2 Series

The Nichols™ M2 high speed gerotor motor has a wide range of smooth operating speeds. Capable of running on low viscosity fluids, it has high starting torque. Intermittent pressureto 2400 psi, torque to 1500 lb-in. Speed ranges from 15 to 5000 rpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Speed	1500 to 5000 RPM at Intermittent Flow	Brand	Nichols™
Minimum Starting Torque	5 to 29 Nm Intermittent (4.5 to 36 Continuous)	Maximum Flow Rate	76 to 132 L/min Intermittent (76 to 132 Continuous)
Maximum Output Torque	5.4 to 30 Nm Intermittent (4.4 to 26 Continuous)	Maximum Pressure Differential	165 bar Intermittent (138 Continuous)
Displacement	13.9 to 83.2 cm3/rev (Motor)	Shaft Diameter	0.875
Division	Pump & Motor Division
