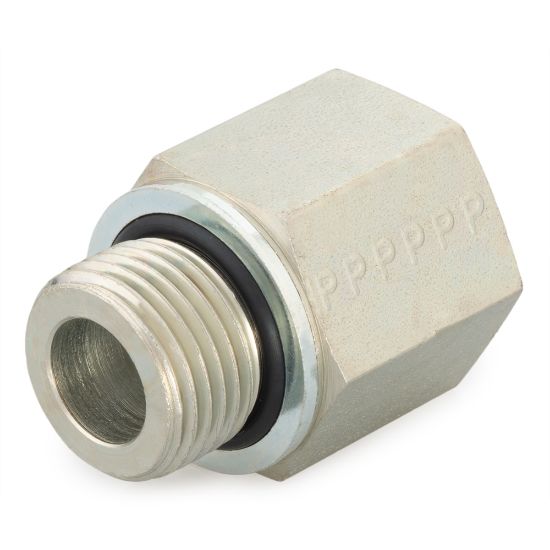

Parker M18-8F8OHG5S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	75 In Stock

Brand Parker

Part No. M18-8F8OHG5S

$36.22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.0031654676258992807 lb
Division	Tube Fittings Division	Maximum Dynamic Pressure	3500 psi
Connection 4 Size	na	Connection 4 Thread Size	na
Fitting Type	Pipe Adapter	Body Material	Steel
Length (inch)	na	Connection 1 Thread Size (mm)	M18x1.5
Connection 2 Thread Size (mm)	na	Body Material	Steel
Connection 3 Style	na	Connection 2 Thread Size (inch)	3/4-16
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male Metric O-Ring Retaining Ring
Connection 3 Thread Size (inch)	na	Connection Style	Metric O-Ring Retaining Ring to SAE-ORB
Connection 2 Style	Female SAE-ORB	Shape	Straight
Connection 1 Thread Size (inch)	na

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
