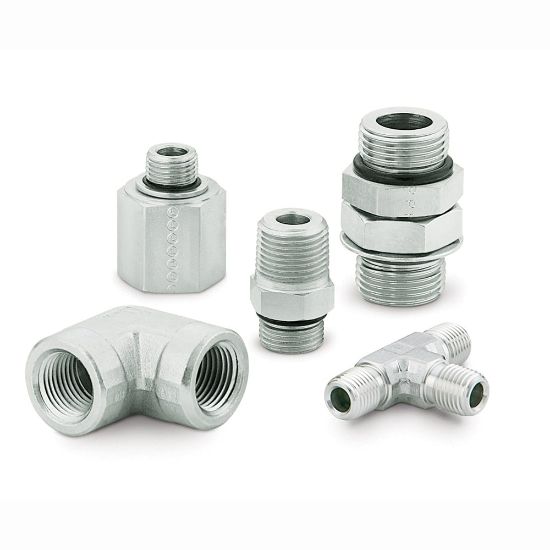

Parker M12-1/4F8OHGS ZJ - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M12-1/4F8OHGS ZJ

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 4 Size	na	Fitting Type	Pipe Adapter
Connection 4 Thread Size	na	Maximum Dynamic Pressure	5000
Division	Tube Fittings Division	Body Material	Steel
Connection 1 Style	Male Metric O-Ring Retaining Ring	Connection 3 Thread Size (inch)	na
Connection 1 Thread Size (mm)	M12X1.5	Shape	Straight
Body Material	Steel, XTR	Connection 1 Thread Size (inch)	na
Connection 2 Thread Size (mm)	na	Connection 2 Style	Female NPT/NPTF
Length (inch)	na	O-Ring Material	90 Durometer Nitrile
Connection Style	Metric O-Ring Retaining Ring to NPTF	Connection 3 Style	na
Connection 2 Thread Size (inch)	1/4-18
