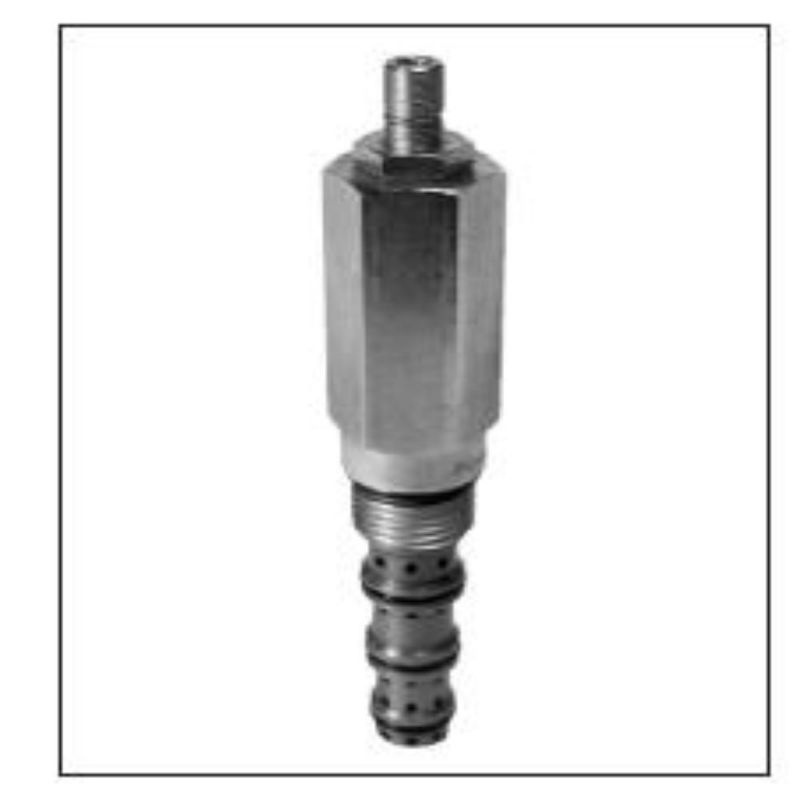

Parker M04A4JTV - Unloading Relief Valves

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. M04A4JTV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Leak Rate	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Pressure Control Range	725-2900
Maximum Operating Pressure	6000	Minimum Operating Temperature	-15
Division	Hydraulic Valve Systems Division	Weight	0.73
Cavity Size	C10-4	Maximum Operating Temperature	+400
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	37
Standard Setting Pressure	1850	Flow Rate	0.53
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Tank Pressure	6000
Maximum Pressure Setting	2900	Valve Material	All parts steel. All operating parts hardened steel
Function	Unloading Relief Valve	Body Material	n/a
Operating Temperature	-15 to +400	Maximum Flow Rate	0.53
Seal Material	Fluorocarbon	Actuation Type	Pressure Sensing
Maximum Inlet Pressure Rating	6000	Adjustment Mechanism	Tamper Resistant
Adjustment Mechanism	Tamper Resistant	Maximum Flow Rate	0.53 GAL/MIN, 2 L/MIN
Pressure Control Range	725-2900 PSI, 50-200 BAR	Seal Material	Fluorocarbon
