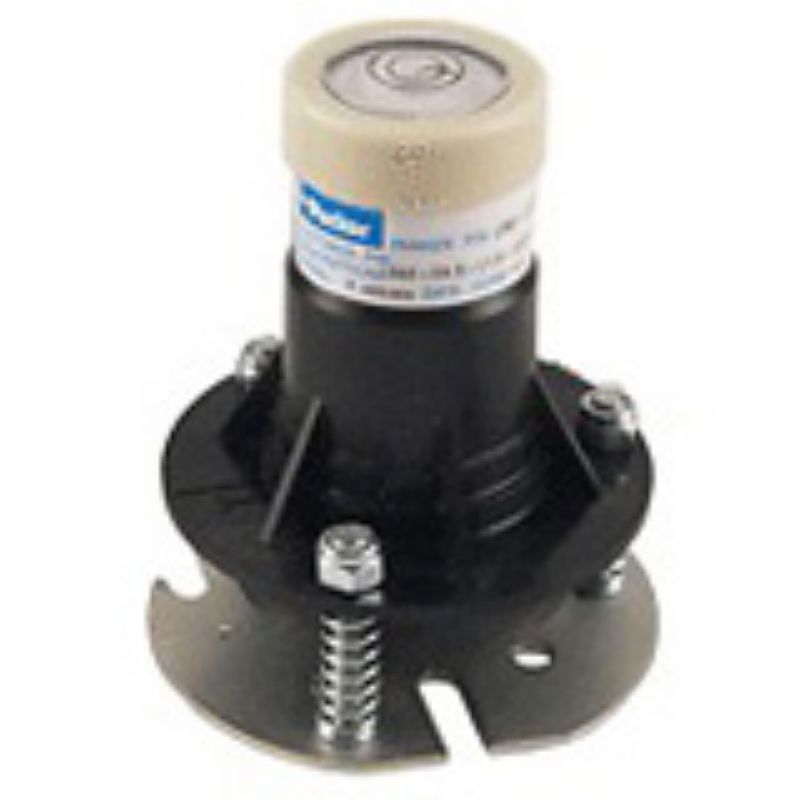

Parker LS60-03027ECD - Custom and Semi Custom Tilt Sensors - LS60

This product is obsolete. Contact your local Parker Representative with any questions. Parker's LS60 is a solid state, dual axis, level sensor designed to limit the amount of tilt during normal operation.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LS60-03027ECD

Products specifications

Attribute name	Attribute value
Ingress Protection Rating	67	Switch Option	NO
Signal Output	Sourcing or Sinking	Electrical Connection	DT04-3PVarious
Minimum Operating Temperature	-35	Output Current Rating	1 A (max.)
Function	Time Delay (0 to 10 sec)	Division	Electronic Motion and Controls Division
Power Supply Voltage	7 to 48	Maximum Operating Temperature	85
Sensor Type	Semi-custom	Model Number	LS60
