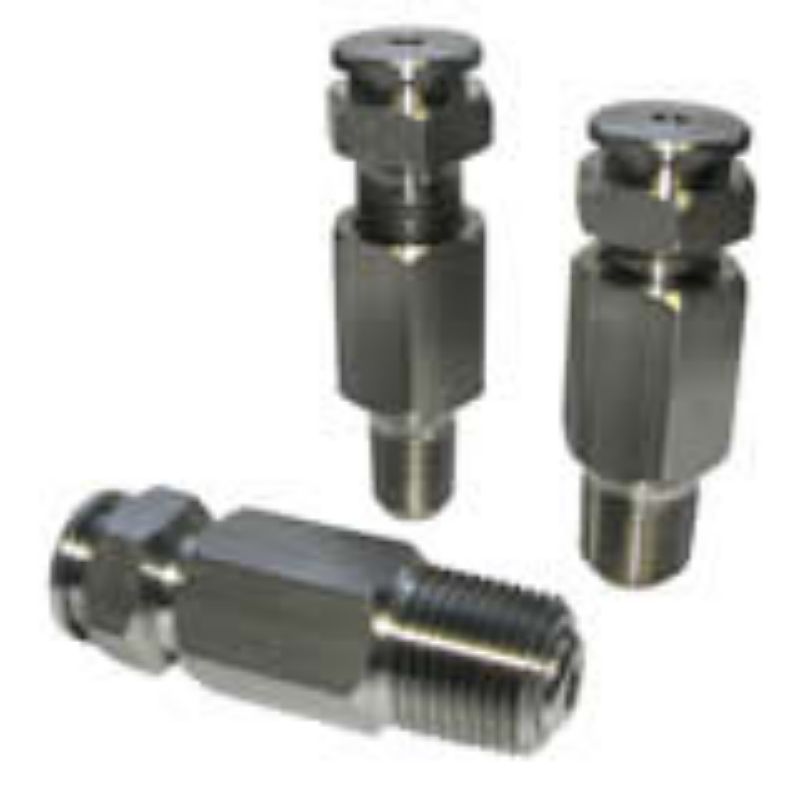

Parker LS10N3-10 - Wellhead Grease Fittings, Lock Seal Series

Parker PGI's Lock Seal Wellhead Grease Fittings feature a two piece metal-to-metal seal with a floating cone to prevent galling of the seat. These fittings accept button head grease gun couplers and in a double ball style go to 10,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LS10N3-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Instrumentation Products Division	Materials of Construction	Stainless Steel AISI 302 (Spring)
Maximum Operating Pressure	689 bar	Plating Type	Zinc
Body Material	Carbon Steel AISI 1215	Heat Treatment	n/a
Connection Size	NPT inch Thread	Product Style	Double Ball Check (2 Piece Metal-to-Metal Seal with Floating Cone to Prevent Galling of Seat)
Ball Material	AISI 52100 Chrome Steel Alloy	Body Material	1215
Connection Thread Size	3/8" NPT
