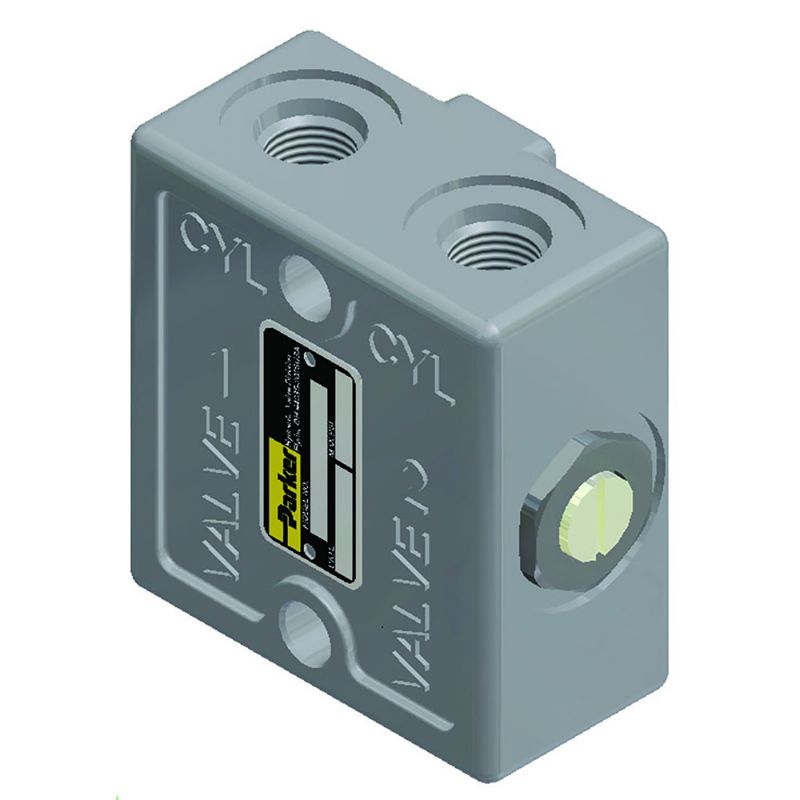

Parker LOA-38-D - Pilot Operated Check Valves – LO, LOA Series

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LOA-38-D

$296.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	2000 psi
Maximum Operating Temperature	+200 °F	Division	Hydraulic Valve Systems Division
Connection Size	3/8"	Weight	2.75 lb
Configuration	n/a	Options	Double PO Check
Body Material	High Strength Cast Iron	Product Style	Piolt Operated Check Valve
Minimum Operating Temperature	-40 °F	Actuation Type	Hydraulic Pressure
Seal Material	n/a	Flow Direction	n/a
Maximum Flow Rate	8 Gal/min	Connection Type	NPT
Mounting Type	In-Line	Port Size	3/8" NPT
Valve Option	Double	Flow Rate (gpm)	8
