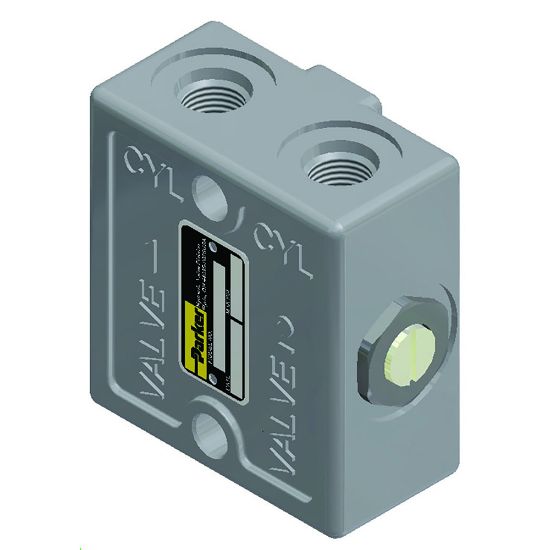

Parker LOA-25-S - Pilot Operated Check Valves – LO, LOA Series

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. LOA-25-S

$268.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Direction	n/a
Minimum Operating Temperature	-40 °F	Actuation Type	Hydraulic Pressure
Options	Single PO Check	Mounting Type	In-Line
Connection Size	1/4"	Maximum Flow Rate	8 Gal/min
Seal Material	Nitrile	Connection Type	NPT
Maximum Operating Temperature	+200 °F	Maximum Operating Pressure	2000 psi
Division	Hydraulic Valve Systems Division	Body Material	High Strength Cast Iron
Configuration	n/a	Weight	2.75 lb
Product Style	Piolt Operated Check Valve	Port Size	1/4" NPT
Flow Rate (gpm)	8	Valve Option	Single
